Manufacturer Part Number
ADS8329IRSAT
Manufacturer
Texas Instruments
Introduction
The ADS8329IRSAT is a high-performance 16-bit Analog to Digital Converter (ADC) ideal for precise data acquisition in various applications.
Product Features and Performance
16-bit resolution
Sampling Rate of 1M samples per second
Single differential or single-ended input
SPI data interface
Successive Approximation Register (SAR) architecture
External reference type
Product Advantages
High resolution ensures detailed data capture
Fast sampling rate suitable for rapid signal changes
Flexible input configurations for diverse system needs

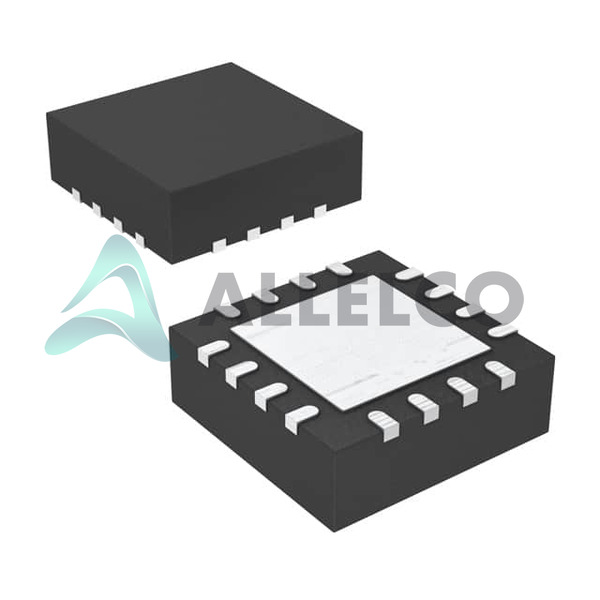

Compact 16-VQFN Exposed Pad package for space-saving design
Key Technical Parameters
Number of Bits: 16
Sampling Rate (Per Second): 1M
Input Type: Differential, Single Ended
Architecture: SAR
Voltage - Supply, Analog: 5V
Voltage - Supply, Digital: 1.65V ~ 5.5V
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Robust operating temperature range ensures reliability under extreme conditions
Surface mount design for secure and durable placement
Compatibility
Compatible with systems requiring SPI interface for data collection
Application Areas
Industrial process control
Medical instrumentation
Portable devices
Communication systems
Product Lifecycle
Status: Active
This product is currently active with no indications of discontinuation. Texas Instruments typically supports ongoing availability with potential future upgrades.
Several Key Reasons to Choose This Product
High resolution of 16 bits for precise measurements
Fast sampling rate of 1M per second ideal for dynamic applications
Supports both differential and single-ended inputs, providing versatility
Robust temperature range suited for extreme environments
Compact and efficient VQFN package for space-constrained applications
