ADS5411IPGPR - Texas Instruments

Manufacturer Part Number

ADS5411IPGPR

Manufacturer

Texas Instruments

Introduction

ADS5411IPGPR is a high-performance 11-bit Analog to Digital Converter (ADC) designed for data acquisition systems that require precise signal conversion at high speeds.

Product Features and Performance

11-bit resolution

Sampling rate up to 105M samples per second

Single differential input

LVDS parallel data interface

Pipelined architecture

Internal reference voltage

Supports 5V analog and 3V to 3.6V digital power supply

Operates in temperatures from -40°C to 85°C

Product Advantages

High-speed sampling capability improves system responsiveness

Pipelined architecture enhances data processing efficiency

Low voltage digital supply reduces power consumption

Supports harsh operating environments with a wide temperature range

Key Technical Parameters

Number of Bits: 11

Sampling Rate (Per Second): 105M

Input Type: Differential

Voltage - Supply, Analog: 5V

Voltage - Supply, Digital: 3V ~ 3.6V

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

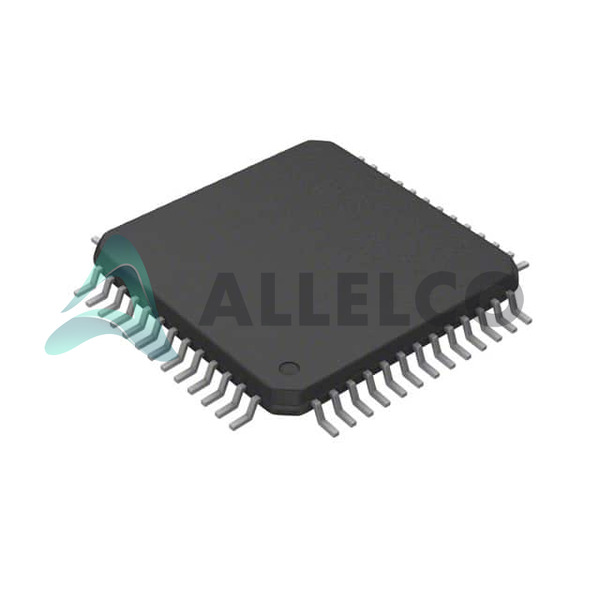

Robust 52-TQFP exposed pad package for enhanced thermal dissipation

Built to withstand harsh temperature environments

Compatibility

Compatible with systems requiring LVDS parallel data interfaces and differential inputs

Application Areas

Data acquisition systems

High-speed signal processing

Medical imaging systems

Communications infrastructure

Product Lifecycle

The ADS5411IPGPR is currently active and not nearing discontinuation. Replacements or upgrades are available if needed.

Several Key Reasons to Choose This Product

Exceptional 11-bit resolution ensures accurate data representation

105M samples per second provides rapid signal acquisition

Internal reference reduces external component requirements

Supports a wide range of power supplies aiding in system integration

Rugged design suited for challenging temperatures and operational conditions
