Manufacturer Part Number
ADS5410IPFB
Manufacturer
Texas Instruments
Introduction
High-speed 12-bit analog-to-digital converter with a differential input and 80MSPS sampling rate.
Product Features and Performance
12-bit resolution
80 MSPS Sampling Rate
Single differential input
Pipelined architecture
Support for External and Internal reference
Input Type Differential
Parallel data interface
S/H-ADC configuration with 1:1 ratio
Product Advantages
High-speed data acquisition
Pipelined architecture for low latency conversion
Ability to use with both external and internal voltage references
Key Technical Parameters
Number of Bits: 12
Sampling Rate (Per Second): 80M
Number of Inputs: 1
Input Type: Differential
Data Interface: Parallel
Configuration: S/H-ADC
Ratio - S/H:ADC: 1:1
Number of A/D Converters: 1
Architecture: Pipelined
Reference Type: External, Internal
Voltage - Supply, Analog: 3V ~ 3.6V
Voltage - Supply, Digital: 1.6V ~ 2V
Quality and Safety Features
Operating Temperature ranges from -40°C to 85°C
Compatibility

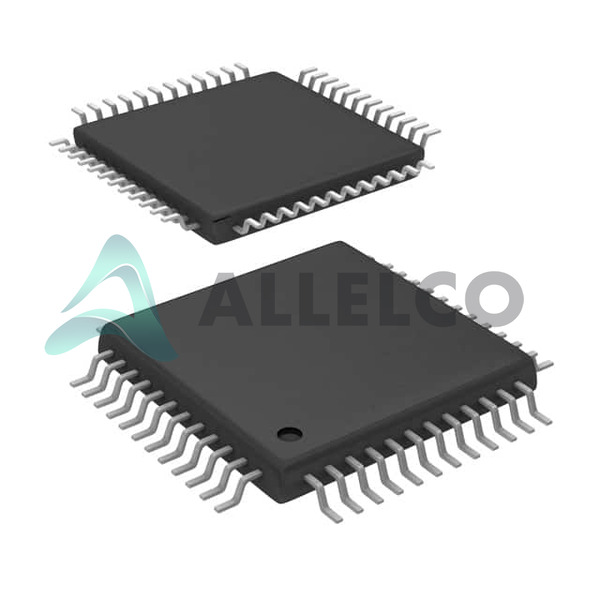

48-TQFP package compatible with surface mount technology
Application Areas
High-speed signal processing
Data acquisition systems
Medical imaging
Communication systems
Test and measurement equipment
Product Lifecycle
Obsolete - Consider future availability and replacement options
Key Reasons to Choose This Product
Texas Instruments' reliability and support
High-speed acquisition suitable for advanced applications
Flexible reference voltage compatible with various systems
Robust operating temperature range for use in different environments
Lead (Pb)-free 48-TQFP package compatible with modern SMT assembly processes
