ADS1292RIRSMR - Texas Instruments

Manufacturer Part Number

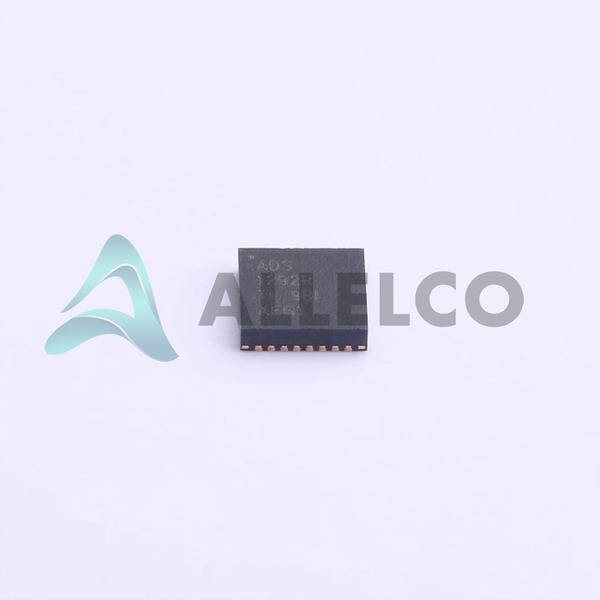

ADS1292RIRSMR

Manufacturer

Texas Instruments

Introduction

ADS1292RIRSMR is a low power, high-performance Analog Front End (AFE) designed for biopotential and bioimpedance applications.

Product Features and Performance

24-bit resolution

Two-channel AFE

Power efficient at 740 µW

Flexible power supply range:

- Analog: 2.7V to 5.25V

- Digital: 1.7V to 3.6V

Integrated Electrostatic Discharge (ESD) protection

Digital filter options for enhanced data precision

Product Advantages

Exceptional precision and noise performance

Minimal power consumption enables use in portable devices

Robust design suited for medical-grade applications

Key Technical Parameters

Number of Bits: 24

Number of Channels: 2

Power Consumption: 740 µW

Supply Voltage, Analog: 2.7V to 5.25V

Supply Voltage, Digital: 1.7V to 3.6V

Quality and Safety Features

Built-in ESD protection

Conforms to stringent medical safety standards

Compatibility

Compatible with various microcontrollers and digital interfaces due to flexible voltage requirements

Application Areas

Medical instrumentation

Patient monitoring systems

Biopotential signal acquisition

Bioimpedance measurement

Product Lifecycle

Currently active

No pending discontinuation

Replacements and upgrades available as part of Texas Instruments’ ongoing product innovation

Several Key Reasons to Choose This Product

High resolution and dual-channel functionality ideal for precision medical applications

Ultra-low power consumption extends battery life in portable devices

Supported by Texas Instruments’ reputation for quality and robust support

Flexible operating voltage ranges facilitate compatibility with existing systems

Future-proofed with active product status and availability of advanced replacements
