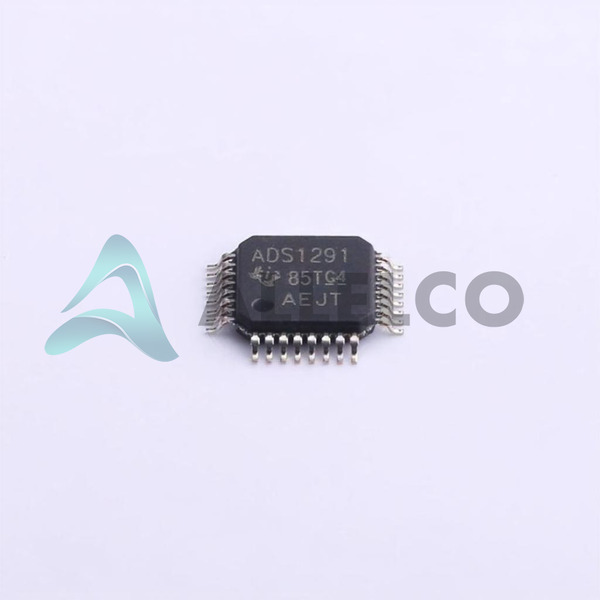

ADS1291IPBS - Texas Instruments

Manufacturer Part Number

ADS1291IPBS

Manufacturer

Texas Instruments

Introduction

ADS1291IPBS is a high-precision, low-power, 24-bit analog front-end (AFE) data acquisition system for medical and industrial applications.

Product Features and Performance

24-bit resolution

Single-channel precision analog-to-digital converter

Low power consumption (495 µW)

Wide analog supply voltage range (2.7V to 5.25V)

Digital supply voltage range (1.7V to 3.6V)

Surface mount, 32-TQFP package

Designed for electrocardiogram (ECG) and impedance measurement applications

High data rates for demanding acquisition tasks

Product Advantages

High resolution for precise data acquisition

Low power ideal for battery-powered devices

Flexible power supply options suit various designs

Compact surface mount form factor enables small PCB designs

Integrated features reduce external component requirements

Key Technical Parameters

Number of Bits: 24

Number of Channels: 1

Power Consumption: 495 µW

Voltage - Supply, Analog: 2.7V to 5.25V

Voltage - Supply, Digital: 1.7V to 3.6V

Mounting Type: Surface Mount

Package / Case: 32-TQFP

Supplier Device Package: 32-TQFP (5x5)

Quality and Safety Features

High-quality design for reliable performance

Meets industry-standard safety requirements

Manufactured by a reputable semiconductor company

Compatibility

Compatible with various microcontrollers and digital systems using a digital supply voltage between 1.7V and 3.6V.

Application Areas

Medical monitoring equipment

Portable and wearable health devices

Industrial process control

Battery-powered systems

Other high-precision data acquisition systems

Product Lifecycle

Active status product

Long-term availability supported by Texas Instruments

Options available for future replacements and upgrades

Several Key Reasons to Choose This Product

Industry-leading data precision for critical applications

Ultra-low power consumption for extended battery life

Supports a wide range of power supplies enhancing design flexibility

Texas Instruments' renowned quality and reliability

Compact size facilitating design integration in size-constrained applications

Ongoing product lifecycle commitment from Texas Instruments provides long-term assurance for designers and manufacturers
