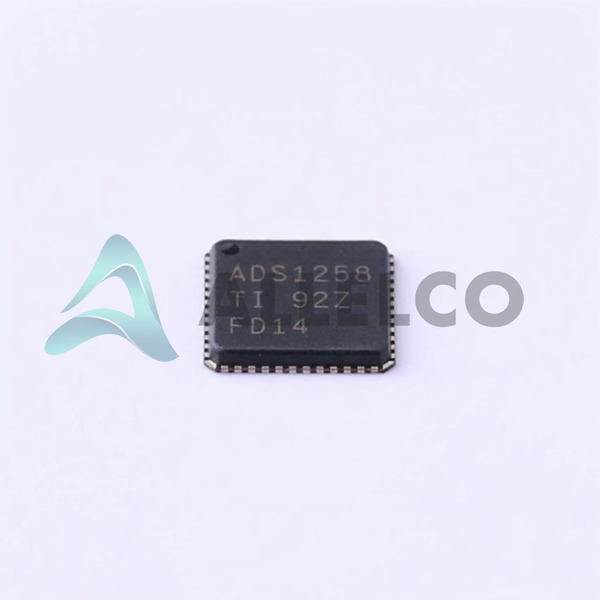

ADS1258IRTCR - Texas Instruments

Manufacturer Part Number

ADS1258IRTCR

Manufacturer

Texas Instruments

Introduction

ADS1258IRTCR is a high-precision 24-bit analog to digital converter (ADC) featuring multiple channel inputs and high sampling rate, ideal for data acquisition in various applications.

Product Features and Performance

24-bit resolution

Sampling rate of 125k per second

8 to 16 differential or single-ended input channels

Sigma-Delta architecture

SPI data interface

External reference type

Supports both analog supply voltage of 5V and digital supply voltage range of 2.7V to 5.25V

Operates in temperatures from -40°C to 105°C

Product Advantages

High-resolution ADC provides detailed and accurate analog signal measurement

Multiple input channels allow flexibility in connected sensors or inputs

High maximum operating temperature range enhances durability and performance in extreme conditions

Key Technical Parameters

Number of Bits: 24

Sampling Rate: 125k per second

Number of Inputs: 8 to 16 (Differential, Single Ended)

Data Interface: SPI

Voltage - Supply, Analog: 5V

Voltage - Supply, Digital: 2.7V ~ 5.25V

Operating Temperature: -40°C ~ 105°C

Quality and Safety Features

Robust build suitable for harsh environmental conditions

Sigma-Delta architecture reduces noise, enhancing signal integrity and accuracy

Compatibility

Compatible with systems requiring high-resolution ADC with SPI interface

Adaptable with various sensors due to differential and single-ended inputs

Application Areas

Industrial process control

Medical monitoring devices

Scientific instrumentation

Portable instrumentation

Product Lifecycle

Currently active with ongoing manufacturer support

Not nearing discontinuation; replacements and upgrades available through Texas Instruments

Several Key Reasons to Choose This Product

Superior 24-bit resolution for precise data acquisition

Versatile input channel configuration supports a wide range of applications

Scalability and compatibility with various digital systems via SPI interface

Operational across extended temperature ranges, ensuring reliability under tough conditions

Continuous product support and availability from Texas Instruments ensures long-term usability and service.
