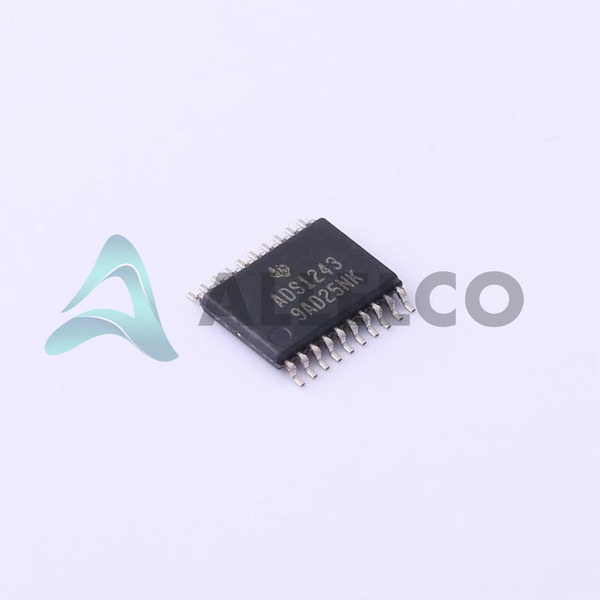

ADS1243IPWR - Texas Instruments

Manufacturer Part Number

ADS1243IPWR

Manufacturer

Texas Instruments

Introduction

High-precision 24-bit ADC with SPI interface suited for advanced sensing and data acquisition

Product Features and Performance

24-bit resolution

Sampling Rate up to 15 samples per second

Eight input channels

Differential and single-ended inputs

SPI data interface

Multiple configuration options with integrated MUX, PGA, and ADC

Sigma-Delta architecture

External reference voltage capable

Product Advantages

High-resolution data conversion for precise measurements

Versatile input range supporting a variety of sensors

Space-saving design ideal for compact electronic systems

Integrated features reduce component count

Key Technical Parameters

24-bit resolution

Sampling Rate: 15 SPS

Number of Inputs: 8

Input Type: Differential, Single Ended

Data Interface: SPI

Voltage Supply, Analog: 2.7V to 5.25V

Voltage Supply, Digital: 2.7V to 5.25V

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Robust operating temperature range ensuring reliability in harsh conditions

Quality tested by Texas Instruments

Compatibility

SPI compatible devices

Utilizes standard 20-TSSOP surface mount package

Application Areas

Industrial instrumentation

Medical equipment

Environmental sensing

Precision data logging systems

Product Lifecycle

Product Status: Active

Long-term availability for ongoing and future projects

Several Key Reasons to Choose This Product

High-precision ADC ideal for critical data acquisition tasks

Extensive input channel support for monitoring multiple parameters

Low power consumption suitable for battery-operated devices

Ease of integration into existing designs with SPI interface

Renowned Texas Instruments reliability and support
