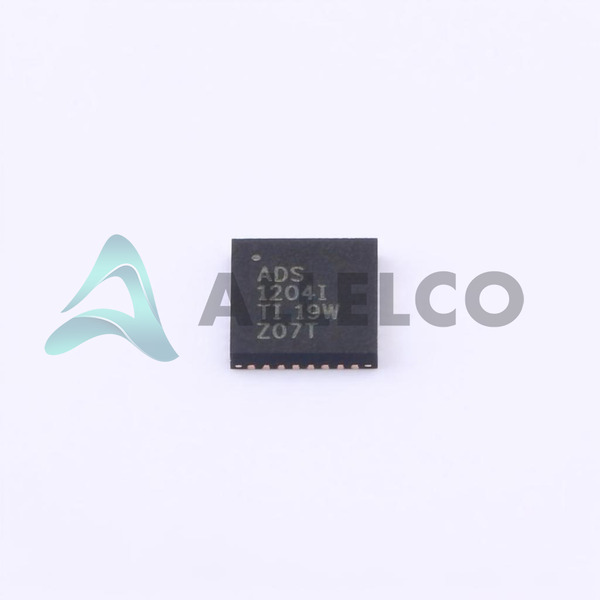

ADS1204IRHBR - Texas Instruments

Manufacturer Part Number

ADS1204IRHBR

Manufacturer

Texas Instruments

Introduction

High-precision, 16-bit resolution modulator with 4 channels suitable for data acquisition systems.

Product Features and Performance

16-bit resolution for high accuracy

4-channel input for multiple data sources

Sampling rate of 40k samples per second

Parallel data interface for efficient communication

Supports a wide range of supply voltages from 2.7V to 5.5V

Suitable for operation in harsh environments with temperatures ranging from -40°C to 105°C

Surface mount, 32-VFQFN exposed pad for compact PCB designs

Product Advantages

Multi-channel support allows for simultaneous data acquisition

High resolution enhances measurement precision

Robust operating temperature range ensures reliability in variable environments

Flexible voltage supply compatibility simplifies power design

Key Technical Parameters

Resolution: 16 bits

Number of Channels: 4

Sampling Rate: 40k samples per second

Voltage Supply Source: Analog and Digital

Voltage - Supply range: 2.7V to 5.5V

Operating Temperature range: -40°C to 105°C

Quality and Safety Features

Built to Texas Instruments' quality standards ensuring product reliability

Meets industry standards for safety and performance

Compatibility

Compatible with a variety of microcontrollers and digital systems having a parallel data interface

Application Areas

Industrial control systems

Medical equipment

Measurement instruments

Automation systems

Product Lifecycle

Active product status

Not indicated as nearing discontinuation

Replacements or upgrades may be available (it is recommended to check the latest updates from Texas Instruments)

Several Key Reasons to Choose This Product

High precision 16-bit resolution ideal for sensitive measurements

Four-channel input for versatile data acquisition needs

Efficient parallel interface ensuring speedy data transfer

Wide voltage supply range for ease of integration into various systems

Operates reliably across a broad temperature spectrum for use in extreme conditions

Texas Instruments' reputation for durable and high-quality components
