HomeProductsIntegrated Circuits (ICs)Data Acquisition - Analog to Digital Converters (ADC)ADS1114IDGST

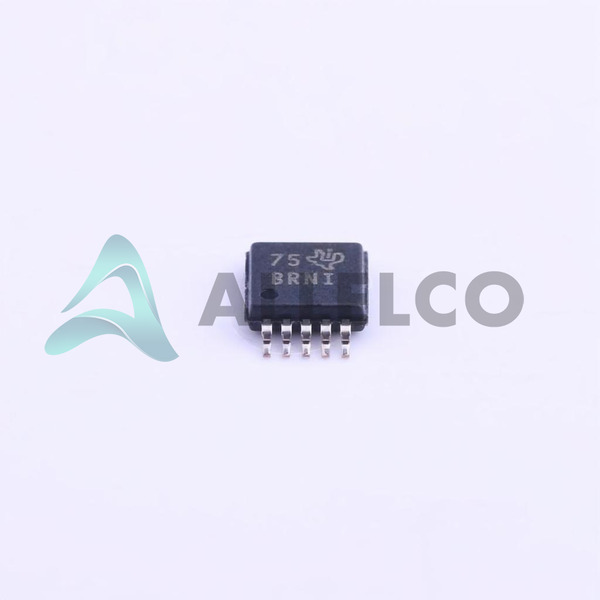

ADS1114IDGST Image
ADS1114IDGST Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

ADS1114IDGST - Texas Instruments

Manufacturer Part Number
ADS1114IDGST
Manufacturer
Texas Instruments
Allelco Part Number
32D-ADS1114IDGST
ECAD Model
Parts Description
IC ADC 16BIT SIGMA-DELTA 10VSSOP
Detailed Description
Package
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Data sheet
Connected Sensors Building Automation Systems Guid.pdf
ADS1113 - ADS1115 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 6597

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

ADS1114IDGST Tech Specifications
Texas Instruments - ADS1114IDGST technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - ADS1114IDGST

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 2V ~ 5.5V
Voltage - Supply, Analog 2V ~ 5.5V
Supplier Device Package 10-VSSOP
Series -
Sampling Rate (Per Second) 860
Reference Type Internal
Ratio - S/H:ADC -
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 125°C
Product Attribute Attribute Value
Number of Inputs 1, 2
Number of Bits 16
Number of A/D Converters 1
Mounting Type Surface Mount
Input Type Differential, Single Ended
Features PGA, Selectable Address
Data Interface I²C
Configuration PGA-ADC
Base Product Number ADS1114
Architecture Sigma-Delta

Parts Introduction

Manufacturer Part Number

ADS1114IDGST

Manufacturer

Texas Instruments

Introduction

High-precision, delta-sigma ADC with I2C interface for data acquisition systems

Product Features and Performance

16-bit resolution

860 samples per second

Selectable single-ended or differential input

Programmable gain amplifier (PGA)

Internal voltage reference

I2C serial interface support

Operates from a single power supply, analog 2V to 5.5V

Product Advantages

High-resolution ADC offers precise measurements

PGA allows for signal amplification

Low power consumption suitable for battery-operated devices

Selectable addresses on the I2C bus for multiple device connectivity

Key Technical Parameters

Number of Bits: 16

Sampling Rate: 860 SPS

Number of Inputs: 1, 2 (configurable)

Input Type: Differential or Single-Ended

Data Interface: I2C

Voltage Supply Range: 2V to 5.5V (Analog and Digital)

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Extended operating temperature range ensures reliability in diverse environments

Robust package design for surface mount technology

Compatibility

I2C compatible interface for easy integration with microcontrollers

Compatible with a broad range of supply voltages

Application Areas

Industrial instrumentation

Portable instrumentation

Battery-powered devices

Temperature sensing and control

Data acquisition systems

Product Lifecycle

Active product status–not nearing discontinuation

Texas Instruments supports longevity by typically offering ongoing production and support

Several Key Reasons to Choose This Product

Precision 16-bit sigma-delta ADC for accurate data acquisition

High sample rate for capturing fast-changing signals

Flexible input configuration to accommodate various signal types

Integrated PGA provides additional flexibility for signal scaling

Reliable operation over a wide temperature range for industrial applications

Texas Instruments' reputable product support and longevity

Multi-device connectivity facilitated by selectable I2C addresses

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments ADS1114IDGST

Product Attribute ADS1114IDGST ADS1115BQDGSRQ1 ADS1112IDRCT ADS1115IDGST
Part Number ADS1114IDGST ADS1115BQDGSRQ1 ADS1112IDRCT ADS1115IDGST
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Series - Automotive, AEC-Q100 - -
Reference Type Internal Internal Internal Internal
Input Type Differential, Single Ended Differential, Single Ended Differential, Single Ended Differential, Single Ended
Number of Bits 16 16 16 16
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 85°C -40°C ~ 125°C
Configuration PGA-ADC MUX-PGA-ADC MUX-PGA-ADC MUX-PGA-ADC
Sampling Rate (Per Second) 860 860 240 860
Data Interface I²C I²C I²C I²C
Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) 10-TFSOP, 10-MSOP (0.118', 3.00mm Width) 10-VFDFN Exposed Pad 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Voltage - Supply, Digital 2V ~ 5.5V 2V ~ 5.5V 2.7V ~ 5.5V 2V ~ 5.5V
Base Product Number ADS1114 ADS1115 ADS1112 ADS1115
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Ratio - S/H:ADC - 0:1 - -
Supplier Device Package 10-VSSOP 10-VSSOP 10-VSON (3x3) 10-VSSOP
Features PGA, Selectable Address PGA PGA, Selectable Address PGA, Selectable Address
Number of Inputs 1, 2 2, 4 2, 3 2, 4
Number of A/D Converters 1 1 1 1
Architecture Sigma-Delta Sigma-Delta Sigma-Delta Sigma-Delta
Voltage - Supply, Analog 2V ~ 5.5V 2V ~ 5.5V 2.7V ~ 5.5V 2V ~ 5.5V

ADS1114IDGST Datasheet PDF

Download ADS1114IDGST pdf datasheets and Texas Instruments documentation for ADS1114IDGST - Texas Instruments.

Datasheets
Connected Sensors Building Automation Systems Guid.pdf
PCN Assembly/Origin
ADSx/DACx/OPAx/TLVx 02/Jun/2022.pdf
HTML Datasheet
ADS1113 - ADS1115 Datasheet.pdf
PCN Design/Specification
ADS111X 08/Feb/2017.pdf
