Manufacturer Part Number

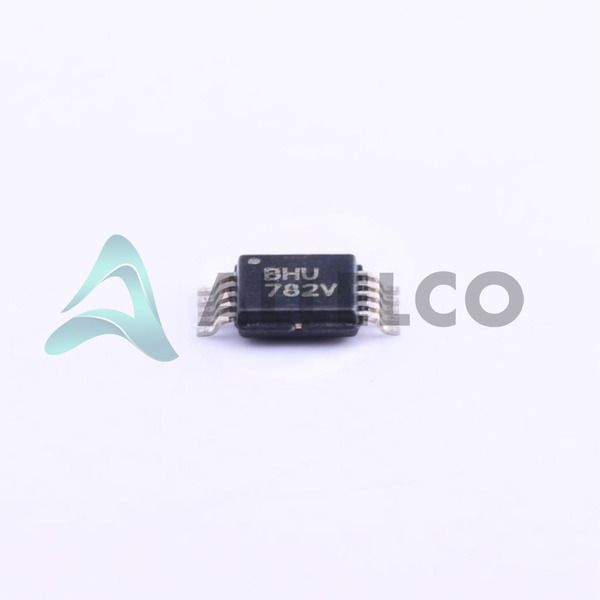

ADS1112IDGST
Manufacturer
Texas Instruments
Introduction
Precision, Low-Power, 16-Bit Analog-to-Digital Converter
Product Features and Performance
16-Bit Resolution
Sampling Rate up to 240 Samples Per Second
2 or 3 Multiplexed Inputs
Differential and Single-Ended Input Types
I2C Data Interface
Integrated Multiplexer, Programmable Gain Amplifier, and ADC
Sigma-Delta Architecture
Internal Reference Voltage
Selectable I2C Addressing
Product Advantages
High Resolution for Precise Measurements
Low Power Consumption Suitable for Battery-Powered Devices
Flexible and Easy-to-Use Interface
Suitable for Multichannel Applications
Key Technical Parameters
Analog Voltage Supply Range: 2.7V to 5.5V
Digital Voltage Supply Range: 2.7V to 5.5V
Operating Temperature Range: -40°C to 85°C
Mounting Type: Surface Mount
Package: 10-TFSOP/MSOP
Quality and Safety Features
Extended Temperature Range for Harsh Environments
Industrial Quality and Reliability
Compatibility
Compatible with Various Microcontrollers and Processors via I2C
Suitable for PCBs with MSOP-10 Footprint
Application Areas
Medical Instruments
Industrial Process Control
Portable Instrumentation
Consumer Electronics
Data Logging Systems
Product Lifecycle
Active Status, Not Near Discontinuation
Availability of Replacements or Upgrades is Assured
Several Key Reasons to Choose This Product
Precision Measurements with 16-Bit Resolution
Efficient Data Acquisition Suitable for Low-Power Devices
Easy Integration with Various Systems through I2C
Multiple Input Channels Enabling Versatile Applications
Robustness for Industrial Applications with a Wide Operating Temperature Range
Support from Texas Instruments for Development and Implementation
