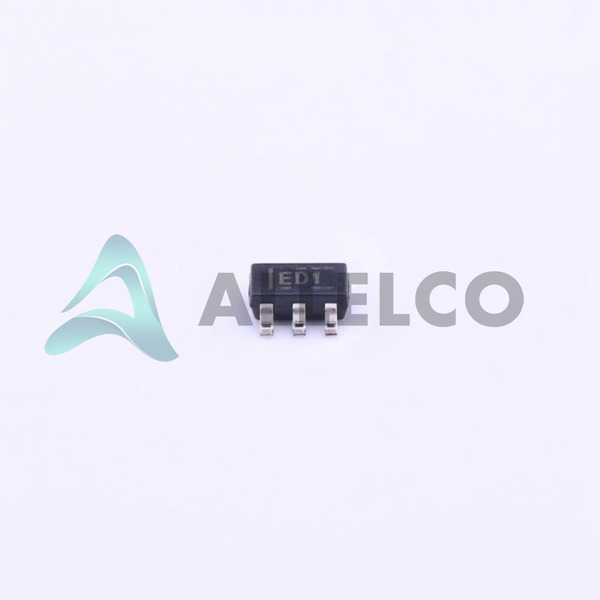

ADS1110A1IDBVT - Texas Instruments

Manufacturer Part Number

ADS1110A1IDBVT

Manufacturer

Texas Instruments

Introduction

High Precision 16-bit Sigma-Delta ADC with Integrated PGA and I2C Interface

Product Features and Performance

16-bit resolution

240 Samples per Second

One Differential or Single Ended Input

Integrated Programmable Gain Amplifier (PGA)

Internal Voltage Reference

Sigma-Delta Architecture

Product Advantages

High precision conversion for accurate data acquisition

Configurable gain for increased flexibility

Low power consumption excellent for portable applications

Wide analog supply voltage range compatible with various sensors

Supports a wide temperature range suited for industrial applications

Key Technical Parameters

Number of Bits: 16

Sampling Rate: 240 sps

Number of Inputs: 1

Input Type: Differential or Single Ended

Data Interface: I2C

Configuration: PGA-ADC

Reference Type: Internal

Voltage Supply Analog: 2.7V to 5.5V

Voltage Supply Digital: 2.7V to 5.5V

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Extended operating temperature range for reliability under harsh conditions

Robust SOT-23 package for durability

Compatibility

I2C interface for straightforward integration with most microcontrollers

Application Areas

Portable instrumentation

Battery-powered devices

Temperature monitoring

Pressure sensing

Industrial control systems

Product Lifecycle

Active

Not currently nearing discontinuation

Continued manufacturer support with replacements or upgrades typically available

Several Key Reasons to Choose This Product

Precision data measurement with 16-bit resolution

Flexible interfacing with I2C compatible with numerous MCU systems

Integrated features reducing external component count

Robust operation over a wide temperature and supply voltage ranges

Surface-mount package suitable for compact designs

Suitable for both single-ended and differential input signals

On-chip PGA enabling signal amplification for low-level signals
