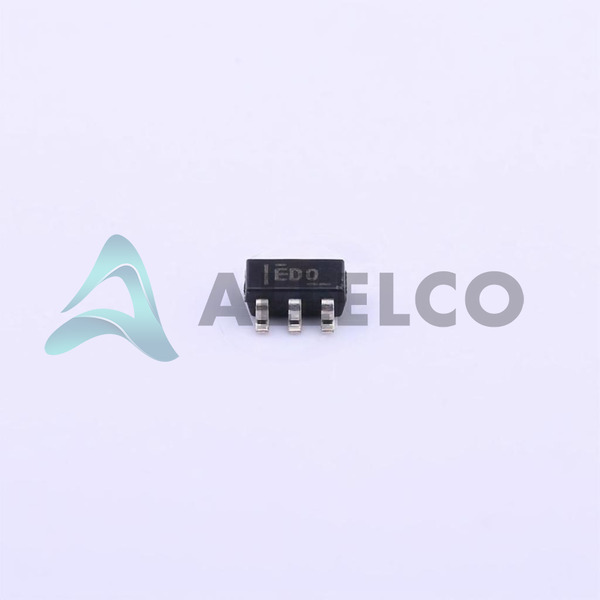

ADS1110A0IDBVR - Texas Instruments

Manufacturer Part Number

ADS1110A0IDBVR

Manufacturer

Texas Instruments

Introduction

The ADS1110A0IDBVR is a precision, low-power, 16-bit analog-to-digital converter with an integrated programmable gain amplifier (PGA) and I2C interface, ideally suited for a range of data acquisition applications.

Product Features and Performance

16-bit resolution

Sampling rate of 240 samples per second

Single differential or single-ended input

I2C serial data interface

Integrated programmable gain amplifier

Sigma-Delta architecture

Internal voltage reference

Selectable I2C address feature

Product Advantages

High resolution for precise data acquisition

Low power consumption suitable for battery-powered devices

Integrated features reduce external component count

Wide operating temperature range (-40°C to 125°C)

Key Technical Parameters

Number of Bits: 16

Sampling Rate: 240 SPS

Number of Inputs: 1

Input Type: Differential, Single Ended

Data Interface: I2C

Configuration: PGA-ADC

Number of A/D Converters: 1

Architecture: Sigma-Delta

Reference Type: Internal

Voltage Supply Analog: 2.7V to 5.5V

Voltage Supply Digital: 2.7V to 5.5V

Operating Temperature: -40°C to 125°C

Quality and Safety Features

Extensive operating temperature range ensures reliability in various environments

Sigma-Delta architecture provides noise reduction and high stability

Compatibility

Compatible with various microcontrollers that support I2C communication

SOT-23-6 package suitable for space-constrained applications

Application Areas

Industrial automation

Battery-operated devices

Sensor interfacing

Portable instrumentation

Temperature monitoring

Data logging

Product Lifecycle

Product Status: Active

Not currently marked for discontinuation, with continued manufacturer support

Reasons to Choose This Product

Robust performance with high-resolution A/D conversion

Flexible input configuration for a variety of sensor types

Ease of integration into existing systems with I2C interface

Low power requirements enhance product longevity in battery applications

High operating temperature range suitable for industrial use

Ready availability in tape and reel packaging for automated manufacturing processes

Texas Instruments' reputation for quality and support in electronic components
