Manufacturer Part Number
RC0402JR-070RL
Manufacturer
Yageo
Introduction

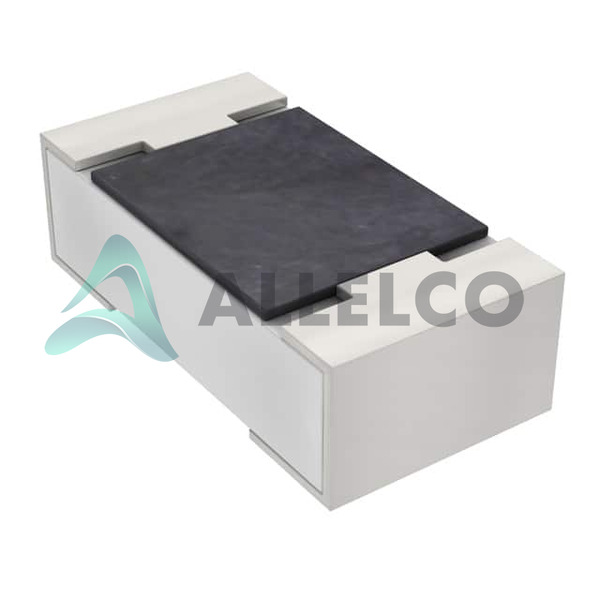

Yageo's RC0402JR-070RL is a surface mount chip resistor with a 0402 (1005 Metric) package.
Product Features and Performance
Thick film composition
0 Ohm resistance
Moisture resistant
Operating temperature range of -55°C to 155°C
Compact 0402 package size of 1.00 mm x 0.50 mm
Product Advantages
Reliable performance in a small footprint
Suitable for high-density circuit board designs
Moisture resistant for harsh environments
Key Technical Parameters
Resistance: 0 Ohms
Tolerance: Jumper
Package: 0402 (1.00 mm x 0.50 mm)
Seated height: 0.40 mm (max)
Terminations: 2
Quality and Safety Features
RoHS3 compliant
Moisture resistant for reliable operation
Compatibility
Suitable for surface mount assembly
Compatible with standard 0402 footprints
Application Areas
Suitable for a wide range of electronic devices and circuits
Commonly used in consumer electronics, industrial equipment, and telecommunications applications
Product Lifecycle
Currently in production
No plans for discontinuation
Several Key Reasons to Choose This Product
Reliable performance in a compact package
Moisture resistant for use in harsh environments
RoHS3 compliance for environmental responsibility
Compatibility with standard surface mount assembly processes
Suitable for high-density circuit board designs
