Specifications

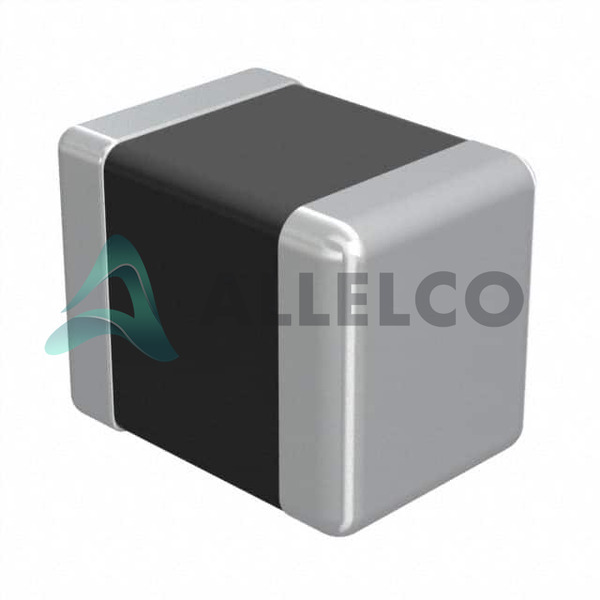

LBR2518T470M Tech Specifications
Taiyo Yuden - LBR2518T470M technical specifications, attributes, parameters and parts with similar specifications to Taiyo Yuden - LBR2518T470M
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Taiyo Yuden |
|
| Type |
Drum Core, Wirewound |
|
| Tolerance |
±20% |
|
| Supplier Device Package |
1007 (2518 Metric) |
|
| Size / Dimension |
0.098' L x 0.071' W (2.50mm x 1.80mm) |
|
| Shielding |
Unshielded |
|
| Series |
LB, R Type |
|
| Ratings |
- |
|
| Q @ Freq |
- |
|
| Package / Case |
1007 (2518 Metric) |
|
| Package |
Tape & Reel (TR) |
|
| Product Attribute |
Attribute Value
| |
| Operating Temperature |
-25°C ~ 105°C |
|
| Mounting Type |
Surface Mount |
|
| Material - Core |
Ferrite |
|
| Inductance Frequency - Test |
2.52 MHz |
|
| Inductance |
47 µH |
|
| Height - Seated (Max) |
0.079' (2.00mm) |
|
| Frequency - Self Resonant |
11MHz |
|
| DC Resistance (DCR) |
840mOhm |
|
| Current Rating (Amps) |
120 mA |
|
| Current - Saturation (Isat) |
- |
|
