HomeProductsCrystals, Oscillators, ResonatorsOscillators570BAB000544DGR

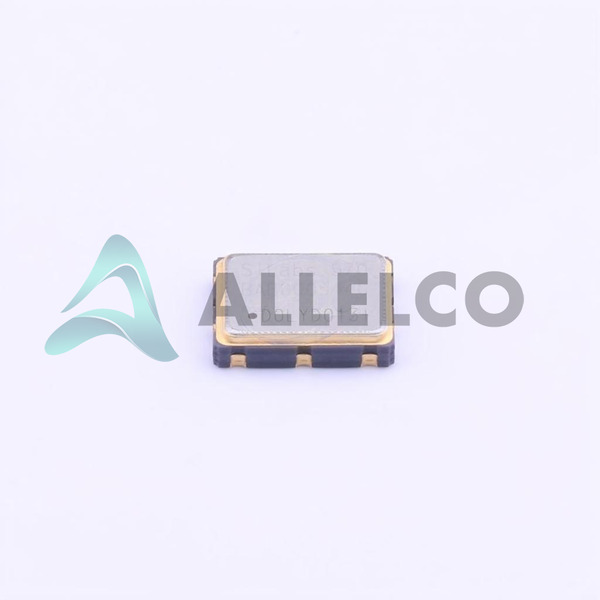

570BAB000544DGR Image
Image may be representation.
See specifications for product details.
EXPRESS OPTION
Payment method

570BAB000544DGR - Skyworks Solutions Inc.

Manufacturer Part Number
570BAB000544DGR
Manufacturer
Skyworks Solutions, Inc.
Allelco Part Number
32D-570BAB000544DGR
ECAD Model
Parts Description
XTAL OSC XO 156.2500MHZ LVDS SMD
Package
8-SMD, No Lead
Data sheet
SI570, SI571.pdf
Our certification
In stock: 1188

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

570BAB000544DGR Tech Specifications
Skyworks Solutions Inc. - 570BAB000544DGR technical specifications, attributes, parameters and parts with similar specifications to Skyworks Solutions Inc. - 570BAB000544DGR

Product Attribute Attribute Value
Manufacturer Skyworks Solutions, Inc.
Voltage - Supply 3.3V
Type XO (Standard)
Spread Spectrum Bandwidth -
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Series Si570
Ratings -
Package / Case 8-SMD, No Lead
Package Tape & Reel (TR)
Output LVDS
Operating Temperature -40°C ~ 85°C
Product Attribute Attribute Value
Mounting Type Surface Mount
Height - Seated (Max) 0.071" (1.80mm)
Function Enable/Disable (Reprogrammable)
Frequency Stability ±50ppm
Frequency 156.25 MHz
Current - Supply (Max) 108mA
Current - Supply (Disable) (Max) -
Base Resonator Crystal
Base Product Number 570BAB
Absolute Pull Range (APR) -

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

570BAB000544DGR

Manufacturer

skyworks-solutions

Introduction

The Si570 is a high-performance configurable oscillator from Skyworks Solutions, designed for a wide range of applications. It utilizes a crystal base resonator and offers a frequency of 156.25 MHz.

Product Features and Performance

Crystal-based XO (Standard) Oscillator

LVDS Output

Enable/Disable Functionality for versatile use

Frequency Stability of ±50ppm

Surface Mount, 8-SMD, No Lead Packaging

Operating Temperature range from -40°C to 85°C

Requires a supply voltage of 3.3V

Maximum supply current of 108mA

Product Advantages

High frequency precision

Low voltage operation

Suitable for harsh temperature environments

Compact and reliable SMD package

Key Technical Parameters

Frequency: 156.25 MHz

Voltage Supply: 3.3V

Frequency Stability: ±50ppm

Operating Temperature: -40°C ~ 85°C

Current Supply (Max): 108mA

Quality and Safety Features

Built to stringent quality standards for reliable performance

Temperature resilient

Compatibility

Compatible with systems requiring LVDS type output

Application Areas

Telecommunications

Data communication

Precision GPS

High-performance computing

Product Lifecycle

Status: Active

Not nearing discontinuation

Replacement and upgrade options are available

Several Key Reasons to Choose This Product

Ideal for high-frequency applications requiring precise control

Low power consumption supporting eco-friendly designs

Enhanced durability supporting operational longevity in extreme conditions

Compact size facilitating easy integration into existing setups

Parts with Similar Specifications

The three parts on the right have similar specifications to Skyworks Solutions Inc. 570BAB000544DGR

Product Attribute 570BAB000544DGR 570CBC000750DG ECS-327SMO-TR 570CBC000507DGR
Part Number 570BAB000544DGR 570CBC000750DG ECS-327SMO-TR 570CBC000507DGR
Manufacturer Skyworks Solutions Inc. Skyworks Solutions Inc. ECS Inc. Skyworks Solutions Inc.
Absolute Pull Range (APR) - - - -
Height - Seated (Max) 0.071" (1.80mm) - 0.079" (2.00mm) -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Type XO (Standard) XO (Standard) XO (Standard) XO (Standard)
Frequency 156.25 MHz 16.9344 MHz 32.768 kHz 70.656 MHz
Ratings - - - -
Series Si570 Si570 ECS-327SMO Si570
Output LVDS CMOS CMOS CMOS
Spread Spectrum Bandwidth - - - -
Package / Case 8-SMD, No Lead 8-SMD, No Lead 4-SMD, No Lead 8-SMD, No Lead
Function Enable/Disable (Reprogrammable) Enable/Disable (Reprogrammable) - Enable/Disable (Reprogrammable)
Current - Supply (Disable) (Max) - - - -
Current - Supply (Max) 108mA 98mA 15µA 98mA
Base Product Number 570BAB 570CBC - 570CBC
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm) 0.276" L x 0.197" W (7.00mm x 5.00mm) 0.256" L x 0.158" W (6.50mm x 4.00mm) 0.276" L x 0.197" W (7.00mm x 5.00mm)
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Package Tape & Reel (TR) Strip Tape & Reel (TR) Tape & Reel (TR)
Voltage - Supply 3.3V 3.3V 1.5V ~ 6V 3.3V
Base Resonator Crystal Crystal Crystal Crystal
Frequency Stability ±50ppm ±20ppm -140ppm, +30ppm ±20ppm

570BAB000544DGR Datasheet PDF

Download 570BAB000544DGR pdf datasheets and Skyworks Solutions Inc. documentation for 570BAB000544DGR - Skyworks Solutions Inc..

Datasheets
