HomeProductsIntegrated Circuits (ICs)Linear - Amplifiers - Instrumentation, OP Amps, Buffer AmpsTSV912IYDT

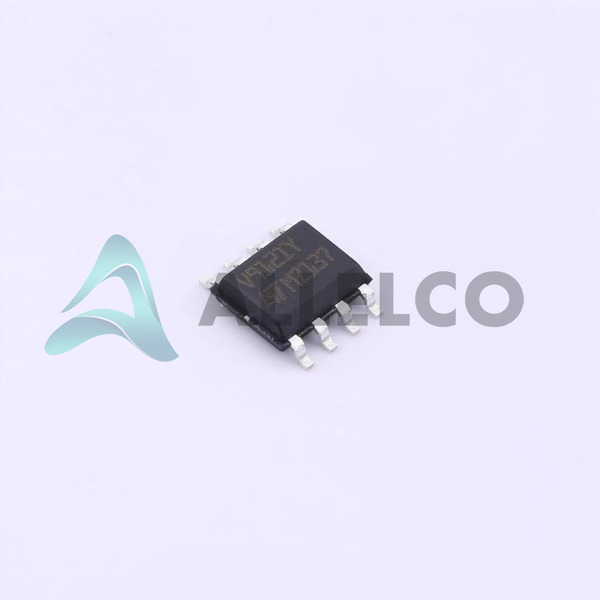

TSV912IYDT Image
TSV912IYDT Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TSV912IYDT - STMicroelectronics

Manufacturer Part Number
TSV912IYDT
Manufacturer
STMicroelectronics
Allelco Part Number
32D-TSV912IYDT
ECAD Model
Parts Description
IC OPAMP GP 2 CIRCUIT 8SOIC
Package
8-SOIC (0.154", 3.90mm Width)
Data sheet
TSV91x(A).pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 40900

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TSV912IYDT Tech Specifications
STMicroelectronics - TSV912IYDT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - TSV912IYDT

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Supply Span (Min) 2.5 V
Voltage - Supply Span (Max) 5.5 V
Voltage - Input Offset 100 µV
Supplier Device Package 8-SOIC
Slew Rate 4.5V/µs
Series Automotive, AEC-Q100
Package / Case 8-SOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR)
Output Type Rail-to-Rail
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C
Number of Circuits 2
Mounting Type Surface Mount
Gain Bandwidth Product 8 MHz
Current - Supply 780µA (x2 Channels)
Current - Output / Channel 35 mA
Current - Input Bias 1 pA
Base Product Number TSV912
Amplifier Type General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS

Parts Introduction

Manufacturer Part Number

TSV912IYDT

Manufacturer

STMicroelectronics

Introduction

Integrated Circuit (IC) for Amplifier Applications

Product Features and Performance

Low-Noise, General-Purpose Operational Amplifier

Rail-to-Rail Output

High Gain Bandwidth Product of 8 MHz

Wide Supply Voltage Range of 2.5 V to 5.5 V

Low Input Offset Voltage of 100 μV

Low Input Bias Current of 1 pA

High Slew Rate of 4.5 V/μs

Automotive-Grade AEC-Q100 Qualified

Product Advantages

Excellent Noise and Offset Performance

Able to Operate over Wide Supply Voltage Range

Suitable for Battery-Powered and Low-Power Applications

High Reliability for Automotive and Industrial Use

Key Technical Parameters

Number of Circuits: 2

Supply Current per Channel: 780 μA

Output Current per Channel: 35 mA

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

RoHS3 Compliant

AEC-Q100 Automotive Grade Qualification

Compatibility

Surface Mount 8-SOIC Package

Compatible with Industry Standard Pinout

Application Areas

Automotive Electronics

Industrial Instrumentation

Medical Equipment

Consumer Electronics

Product Lifecycle

Currently in Production

Replacement and Upgrade Options Available

Key Reasons to Choose This Product

High-Performance, Low-Noise Operational Amplifier

Wide Operating Voltage and Temperature Range

Automotive and Industrial Grade Reliability

Space-Saving Surface Mount Package

Proven Track Record in Diverse Applications

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics TSV912IYDT

Product Attribute TSV912IYDT TSV912AQDRQ1 TSV914AIYDT TSV912IYST
Part Number TSV912IYDT TSV912AQDRQ1 TSV914AIYDT TSV912IYST
Manufacturer STMicroelectronics Texas Instruments STMicroelectronics STMicroelectronics
Voltage - Input Offset 100 µV 300 µV 1.5 mV 100 µV
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Supply Span (Min) 2.5 V 2.5 V 2.5 V 2.5 V
Supplier Device Package 8-SOIC 8-SOIC 14-SO 8-MiniSO
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Current - Output / Channel 35 mA 50 mA 35 mA 35 mA
Current - Supply 780µA (x2 Channels) 550µA (x2 Channels) 780µA (x4 Channels) 780µA (x2 Channels)
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Package / Case 8-SOIC (0.154", 3.90mm Width) 8-SOIC (0.154", 3.90mm Width) 14-SOIC (0.154", 3.90mm Width) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Output Type Rail-to-Rail Rail-to-Rail Rail-to-Rail Rail-to-Rail
Current - Input Bias 1 pA 5 pA 1 pA 1 pA
Slew Rate 4.5V/µs 4.5V/µs 4.5V/µs 4.5V/µs
Number of Circuits 2 2 4 2
Series Automotive, AEC-Q100 Automotive, AEC-Q100 Automotive, AEC-Q100 Automotive, AEC-Q100
Base Product Number TSV912 TSV912 TSV914 TSV912
Amplifier Type General Purpose General Purpose General Purpose General Purpose
Gain Bandwidth Product 8 MHz 8 MHz 8 MHz 8 MHz
Voltage - Supply Span (Max) 5.5 V 5.5 V 5.5 V 5.5 V

TSV912IYDT Datasheet PDF

Download TSV912IYDT pdf datasheets and STMicroelectronics documentation for TSV912IYDT - STMicroelectronics.

Datasheets
TSV91x(A).pdf
PCN Packaging
Mult Dev Cover Tape Chg 14/Aug/2019.pdf
PCN Design/Specification
SO8/SO14 Pkg Material Set Chg 10/Jun/2016.pdf
PCN Assembly/Origin
AMS-AAS/14/8632 05/Aug/2014.pdf
