HomeProductsDiscrete Semiconductor ProductsDiodes - Rectifiers - ArraysSTTH3003CW

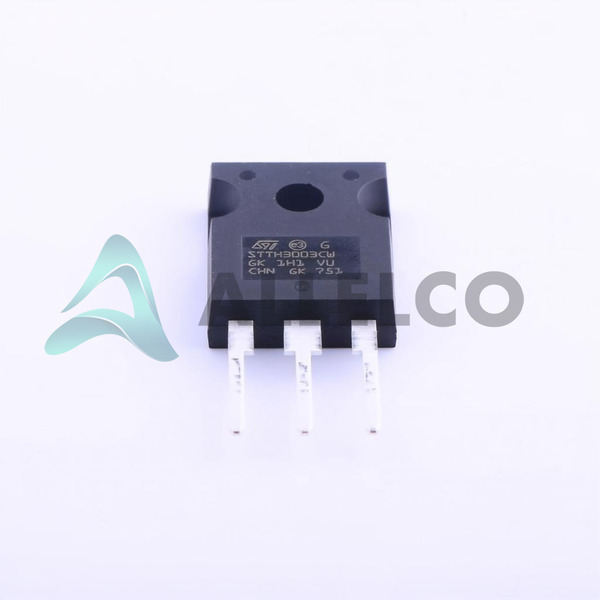

STTH3003CW Image
STTH3003CW Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

STTH3003CW - STMicroelectronics

Manufacturer Part Number
STTH3003CW
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STTH3003CW
ECAD Model
Parts Description
DIODE ARRAY GP 300V 15A TO247-3
Detailed Description
Package
TO-247-3
Data sheet
STTH3003CW.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 29454

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

STTH3003CW Tech Specifications
STMicroelectronics - STTH3003CW technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STTH3003CW

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 15 A
Voltage - DC Reverse (Vr) (Max) 300 V
Technology Standard
Supplier Device Package TO-247-3
Speed Fast Recovery =< 500ns, > 200mA (Io)
Series -
Reverse Recovery Time (trr) 40 ns
Product Attribute Attribute Value
Package / Case TO-247-3
Package Tube
Operating Temperature - Junction 175°C (Max)
Mounting Type Through Hole
Diode Configuration 1 Pair Common Cathode
Current - Reverse Leakage @ Vr 40 µA @ 300 V
Current - Average Rectified (Io) (per Diode) 15A
Base Product Number STTH3003

Parts Introduction

Manufacturer Part Number

STTH3003CW

Manufacturer

STMicroelectronics

Introduction

High-speed, high-current rectifier diode

Product Features and Performance

Fast reverse recovery time of 40 ns

High average forward current of 15 A per diode

Low forward voltage drop of 1.25 V at 15 A

Suitable for a wide range of industrial and power supply applications

Product Advantages

Excellent performance in high-frequency, high-current applications

Robust design and high reliability

Efficient power conversion and low energy losses

Key Technical Parameters

Maximum reverse voltage: 300 V

Maximum junction temperature: 175°C

1 pair common cathode configuration

Quality and Safety Features

RoHS3 compliant

Robust TO-247-3 package

Compatibility

Suitable for use in a variety of industrial and power supply applications

Application Areas

Switched-mode power supplies

Motor drives

Welding equipment

Uninterruptible power supplies (UPS)

Battery chargers

Product Lifecycle

This product is an active and widely used component, with no plans for discontinuation.

Replacement and upgrade options are readily available from STMicroelectronics and other manufacturers.

Key Reasons to Choose This Product

Excellent high-frequency, high-current performance

Reliable and efficient power conversion

Robust design and high thermal capability

Easy integration and compatibility with a wide range of applications

Availability of replacement and upgrade options

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STTH3003CW

Product Attribute STTH3003CW STTH3002CT STTH3002CG STTH3002CW
Part Number STTH3003CW STTH3002CT STTH3002CG STTH3002CW
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Speed Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io) Fast Recovery =< 500ns, > 200mA (Io)
Package / Case TO-247-3 TO-220-3 TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-247-3
Diode Configuration 1 Pair Common Cathode 1 Pair Common Cathode 1 Pair Common Cathode 1 Pair Common Cathode
Base Product Number STTH3003 STTH3002 STTH3002 STTH3002
Technology Standard Standard Standard Standard
Supplier Device Package TO-247-3 TO-220 D2PAK TO-247-3
Reverse Recovery Time (trr) 40 ns 22 ns 22 ns 22 ns
Mounting Type Through Hole Through Hole Surface Mount Through Hole
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 15 A 1.05 V @ 15 A 1.05 V @ 15 A 1.05 V @ 15 A
Current - Average Rectified (Io) (per Diode) 15A 15A 15A 15A
Voltage - DC Reverse (Vr) (Max) 300 V 200 V 200 V 200 V
Package Tube Tube Tube Tube
Operating Temperature - Junction 175°C (Max) 175°C (Max) 175°C (Max) 175°C (Max)
Current - Reverse Leakage @ Vr 40 µA @ 300 V 20 µA @ 200 V 20 µA @ 200 V 20 µA @ 200 V
Series - - - -

STTH3003CW Datasheet PDF

Download STTH3003CW pdf datasheets and STMicroelectronics documentation for STTH3003CW - STMicroelectronics.

Datasheets
STTH3003CW.pdf
PCN Design/Specification
Mult Dev Adv Material Notice 8/Apr/2019.pdf Mult Dev Mold Compound Chg 6/May/2019.pdf
PCN Assembly/Origin
IPG/14/8475 16/May/2014.pdf
