Manufacturer Part Number

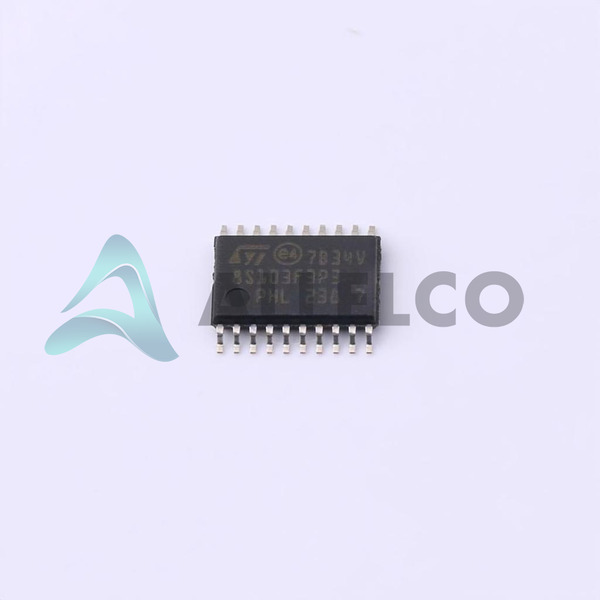

STM8S103F3P3
Manufacturer
STMicroelectronics
Introduction
The STM8S103F3P3 is an 8-bit microcontroller designed for modern embedded control systems, offering a balanced blend of performance, power efficiency, and design flexibility.
Product Features and Performance
Core Processor: STM8
Core Size: 8-Bit
Speed: 16MHz
Connectivity: I2C, IrDA, LINbus, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, Power-On Reset (POR), Pulse Width Modulation (PWM), Watchdog Timer (WDT)
Number of I/O: 16
Program Memory Size: 8KB
Program Memory Type: FLASH
EEPROM Size: 640 x 8
RAM Size: 1K x 8
Data Converters: A/D 5x10b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 125°C
Product Advantages
Comprehensive peripheral set enhancing system functionality
Integrated reset and power management capabilities for improved system reliability
Flexible memory options catering to various application demands
Wide operating voltage and temperature range, facilitating usage in harsh environments
Key Technical Parameters
Clock Speed: 16MHz
Analog to Digital Converters: 5x10b
Voltage Supply: 2.95V to 5.5V
Mounting Type: Surface Mount
Quality and Safety Features
Brown-out Detect/Reset ensures reliable operation under low voltage conditions
Watchdog Timer helps in recovering from software errors
Compatibility
The device's industry-standard connectivity and I/O interface ensure compatibility with an extensive range of electronic components and systems.
Application Areas
Industrial control systems
Home automation
Consumer electronics
Automotive applications
Product Lifecycle
Status: Active
Not currently nearing discontinuation, with ongoing manufacturer support for replacements or upgrades
Several Key Reasons to Choose This Product
Enhanced system robustness through comprehensive peripheral support and integrated safety features
High system flexibility with wide operating voltage and temperature range
STM8 core offers an excellent balance of performance and power consumption for embedded control
Extensive manufacturer support and active product status ensure long-term availability and upgrades
STMicroelectronics' reputation for quality and reliability in the semiconductor industry
