HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersSTM8S003F3U6TR

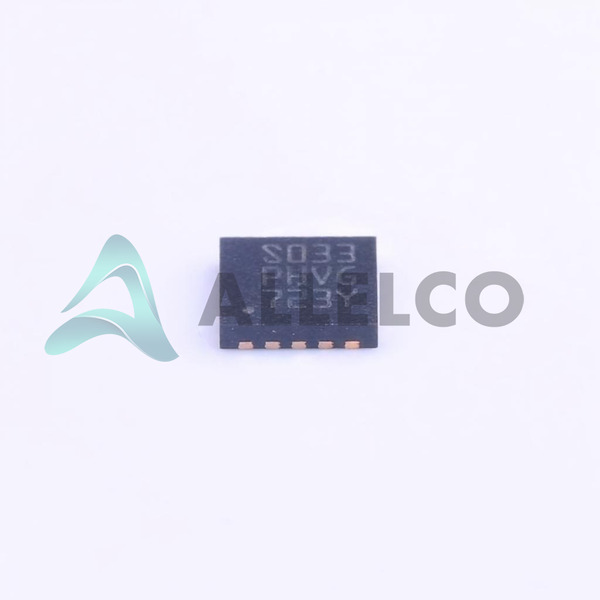

STM8S003F3U6TR Image
STM8S003F3U6TR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

STM8S003F3U6TR - STMicroelectronics

Manufacturer Part Number
STM8S003F3U6TR
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STM8S003F3U6TR
ECAD Model
Parts Description
IC MCU 8BIT 8KB FLASH 20UFQFPN
Detailed Description
Package
20-UFQFN
Data sheet
STM8S003K3/F3.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 53200

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

STM8S003F3U6TR Tech Specifications
STMicroelectronics - STM8S003F3U6TR technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STM8S003F3U6TR

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Supply (Vcc/Vdd) 2.95V ~ 5.5V
Supplier Device Package 20-UFQFPN (3x3)
Speed 16MHz
Series STM8S
RAM Size 1K x 8
Program Memory Type FLASH
Program Memory Size 8KB (8K x 8)
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Package / Case 20-UFQFN
Package Tape & Reel (TR)
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 16
Mounting Type Surface Mount
EEPROM Size 128 x 8
Data Converters A/D 5x10b
Core Size 8-Bit
Core Processor STM8
Connectivity I²C, IrDA, LINbus, SPI, UART/USART
Base Product Number STM8

Parts Introduction

Manufacturer Part Number

STM8S003F3U6TR

Manufacturer

STMICROELECTRONICS

Introduction

8-bit STM8S Microcontroller Unit

Product Features and Performance

8-bit Core Processor

16MHz Maximum Clock Speed

8KB Flash Program Memory

128 Bytes EEPROM

1KB RAM

Integrated I2C, IrDA, LINbus, SPI, UART/USART Connectivity

5-Channel 10-bit A/D Converter

16 GPIO Pins

Product Advantages

Brown-out Detect/Reset for System Protection

Power-on Reset (POR) Feature

Programmable Pulse Width Modulation (PWM)

Embedded Watchdog Timer (WDT)

Low Power Consumption

Robust and Versatile Peripheral Set

Key Technical Parameters

Core Size: 8-Bit

Program Memory Size: 8KB

EEPROM Size: 128 Bytes

RAM Size: 1KB

Voltage Supply Range: 2.95V to 5.5V

Data Converters: 5x10-bit ADC

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Industry-Standard Quality Control

Extended Operating Temperature Range

Built-in Reset and Power-Down Modes for Safety

Compatibility

Compatible with STM8S Series Ecosystem

Supports Various Communication Protocols

Application Areas

Consumer Electronics

Industrial Control Systems

Automotive Applications

Home Automation Devices

Computer Peripherals

Product Lifecycle

Active Product Status

Long-term availability expected

Several Key Reasons to Choose This Product

Highly Integrated Design Reduces System Complexity

Flexible Peripheral Set Addresses Broad Application Requirements

Extended Temperature Range Suitable for Harsh Environments

Scalable from 8KB Flash to Higher Memory Options in STM8S Series

Budget-friendly Option Suitable for Cost-sensitive Applications

Widespread Community Support and Resources

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STM8S003F3U6TR

Product Attribute STM8S003F3U6TR STM8S003F3P6 STM8S003F3P6TR STM8S005C6T6
Part Number STM8S003F3U6TR STM8S003F3P6 STM8S003F3P6TR STM8S005C6T6
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Core Size 8-Bit 8-Bit 8-Bit 8-Bit
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Supplier Device Package 20-UFQFPN (3x3) 20-TSSOP 20-TSSOP 48-LQFP (7x7)
Core Processor STM8 STM8 STM8 STM8
Oscillator Type Internal Internal Internal Internal
Peripherals Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT Brown-out Detect/Reset, POR, PWM, WDT
Speed 16MHz 16MHz 16MHz 16MHz
Base Product Number STM8 STM8 STM8 STM8
EEPROM Size 128 x 8 128 x 8 128 x 8 128 x 8
Voltage - Supply (Vcc/Vdd) 2.95V ~ 5.5V 2.95V ~ 5.5V 2.95V ~ 5.5V 2.95V ~ 5.5V
Package / Case 20-UFQFN 20-TSSOP (0.173', 4.40mm Width) 20-TSSOP (0.173', 4.40mm Width) 48-LQFP
Program Memory Type FLASH FLASH FLASH FLASH
Package Tape & Reel (TR) Tube Tape & Reel (TR) Tray
Program Memory Size 8KB (8K x 8) 8KB (8K x 8) 8KB (8K x 8) 32KB (32K x 8)
Connectivity I²C, IrDA, LINbus, SPI, UART/USART I²C, IrDA, LINbus, SPI, UART/USART I²C, IrDA, LINbus, SPI, UART/USART I²C, IrDA, LINbus, SPI, UART/USART
Series STM8S STM8S STM8S STM8S
RAM Size 1K x 8 1K x 8 1K x 8 2K x 8
Data Converters A/D 5x10b A/D 5x10b A/D 5x10b A/D 10x10b
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Number of I/O 16 16 16 38

STM8S003F3U6TR Datasheet PDF

Download STM8S003F3U6TR pdf datasheets and STMicroelectronics documentation for STM8S003F3U6TR - STMicroelectronics.

PCN Packaging
Moisture Barrier Bag 09/May/2016.pdf
PCN Design/Specification
New Bill of Material 17/Mar/2016.pdf
HTML Datasheet
STM8S003K3/F3.pdf
PCN Assembly/Origin
Assembly Process 04/Jan/2022.pdf
