HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersSTM8L152K6U6

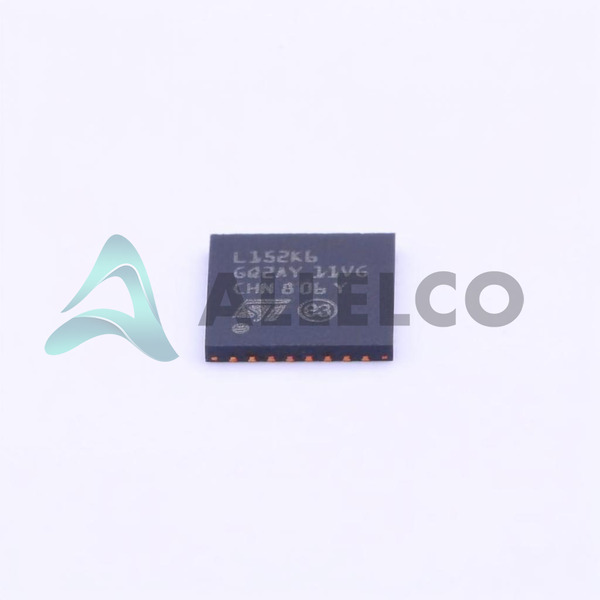

STM8L152K6U6 Image
STM8L152K6U6 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

STM8L152K6U6 - STMicroelectronics

Manufacturer Part Number
STM8L152K6U6
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STM8L152K6U6
ECAD Model
Parts Description
IC MCU 8BIT 32KB FLASH 32UFQFPN
Detailed Description
Package
32-UFQFN Exposed Pad
Data sheet
STM8L15xx4, xx6 Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 24020

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

STM8L152K6U6 Tech Specifications
STMicroelectronics - STM8L152K6U6 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STM8L152K6U6

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Supplier Device Package 32-UFQFPN (5x5)
Speed 16MHz
Series STM8L EnergyLite
RAM Size 2K x 8
Program Memory Type FLASH
Program Memory Size 32KB (32K x 8)
Peripherals Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT
Package / Case 32-UFQFN Exposed Pad
Package Tray
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 29
Mounting Type Surface Mount
EEPROM Size 1K x 8
Data Converters A/D 21x12b; D/A 1x12b
Core Size 8-Bit
Core Processor STM8
Connectivity I²C, IrDA, SPI, UART/USART
Base Product Number STM8

Parts Introduction

Manufacturer Part Number

STM8L152K6U6

Manufacturer

STMicroelectronics

Introduction

Embedded Microcontroller

Part of the STM8L EnergyLite series

Product Features and Performance

8-bit core

16MHz operating speed

32KB program memory (32K x 8)

2K x 8 RAM size

1K x 8 EEPROM size

21x12b A/D converter, 1x12b D/A converter

29 I/O pins

Connectivity: IrDA, SPI, UART/USART

Product Advantages

Low-power consumption

Integrated power management features

Flexible peripheral set

Key Technical Parameters

RoHS3 compliant

32-UFQFPN (5x5) package

Surface mount

Operating temperature range: -40°C to 85°C

Quality and Safety Features

Brown-out detection and reset

Power-on reset (POR)

Watchdog timer (WDT)

Compatibility

Compatible with STM8 core architecture

Application Areas

Portable and battery-powered applications

Industrial control

Building automation

Consumer electronics

Product Lifecycle

Currently in production

Replacements and upgrades available within the STM8L series

Key Reasons to Choose This Product

Excellent power efficiency

Comprehensive peripheral set

Robust safety and security features

Long-term availability and support from STMicroelectronics

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STM8L152K6U6

Product Attribute STM8L152K6U6 STM8L152K4T6TR STM8L152M8T6TR STM8L152C6U6
Part Number STM8L152K6U6 STM8L152K4T6TR STM8L152M8T6TR STM8L152C6U6
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Speed 16MHz 16MHz 16MHz 16MHz
Oscillator Type Internal Internal Internal Internal
EEPROM Size 1K x 8 1K x 8 2K x 8 1K x 8
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
RAM Size 2K x 8 2K x 8 4K x 8 2K x 8
Core Processor STM8 STM8 STM8 STM8
Package / Case 32-UFQFN Exposed Pad 32-LQFP 80-LQFP 48-UFQFN Exposed Pad
Connectivity I²C, IrDA, SPI, UART/USART I²C, IrDA, SPI, UART/USART I²C, IrDA, SPI, UART/USART I²C, IrDA, SPI, UART/USART
Series STM8L EnergyLite STM8L EnergyLite STM8L EnergyLite STM8L EnergyLite
Base Product Number STM8 STM8 STM8 STM8
Supplier Device Package 32-UFQFPN (5x5) 32-LQFP (7x7) 80-LQFP (14x14) 48-UFQFPN (7x7)
Core Size 8-Bit 8-Bit 8-Bit 8-Bit
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Program Memory Size 32KB (32K x 8) 16KB (16K x 8) 64KB (64K x 8) 32KB (32K x 8)
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V 1.8V ~ 3.6V
Number of I/O 29 29 68 41
Package Tray Tape & Reel (TR) Tape & Reel (TR) Tray
Program Memory Type FLASH FLASH FLASH FLASH
Data Converters A/D 21x12b; D/A 1x12b A/D 21x12b; D/A 1x12b A/D 28x12b; D/A 2x12b A/D 25x12b; D/A 1x12b
Peripherals Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT Brown-out Detect/Reset, DMA, IR, LCD, POR, PWM, WDT
