Manufacturer Part Number
STM6510RCACDG6F
Manufacturer
stmicroelectronics
Introduction
The STM6510RCACDG6F is a sophisticated power management integrated circuit (PMIC) supervisor from STMicroelectronics, designed for monitoring a single voltage rail.
Product Features and Performance
Incorporates Smart Reset™ technology for enhanced system control.
Monitors one voltage threshold, ensuring stable operation of the monitored system.
Features an open drain or open collector output for versatile system integration.
Adjustable/selectable reset timeout feature for tailored system response.
Operates effectively in a wide temperature range from -40°C to 85°C, suitable for various environments.
Surface mount technology for compact and efficient PCB design.
Product Advantages
Smart Reset™ adds an intelligent layer of protection and control.
Flexible threshold and timeout settings enable customization for specific applications.
Low operating temperature range enhances reliability in harsh conditions.
Compact 8-WFDFN package saves space on modern high-density PCBs.
Key Technical Parameters
Voltage Threshold: 2.625V
Operating Temperature: -40°C ~ 85°C (TA)

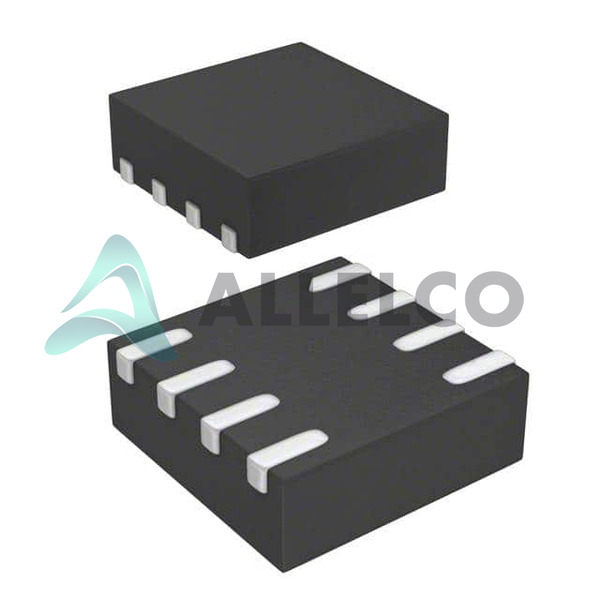

Package / Case: 8-WFDFN
Output: Open Drain or Open Collector
Reset: Active Low
Reset Timeout: Adjustable/Selectable
Quality and Safety Features
Manufactured by a leader in the semiconductor industry, ensuring high reliability and performance.
Strict adherence to industry safety and quality standards.
Compatibility
Ideal for systems requiring accurate voltage monitoring and flexible reset functionalities.
Compatible with various microcontrollers and digital systems for broad application use.
Application Areas
Consumer electronics
Automotive systems
Industrial controls
Networking equipment
Product Lifecycle
Currently marked as active, indicating ongoing manufacturing and availability.
No announced discontinuation, ensuring long-term availability for new designs.
Several Key Reasons to Choose This Product
Reliability and performance backed by STMicroelectronics’ reputation.
Smart Reset™ technology provides enhanced system protection.
Flexible configuration options enable precise system management.
Suitable for a wide range of applications due to its broad operating temperature range and compact package.
Long product lifecycle assures availability for future projects and system upgrades.
