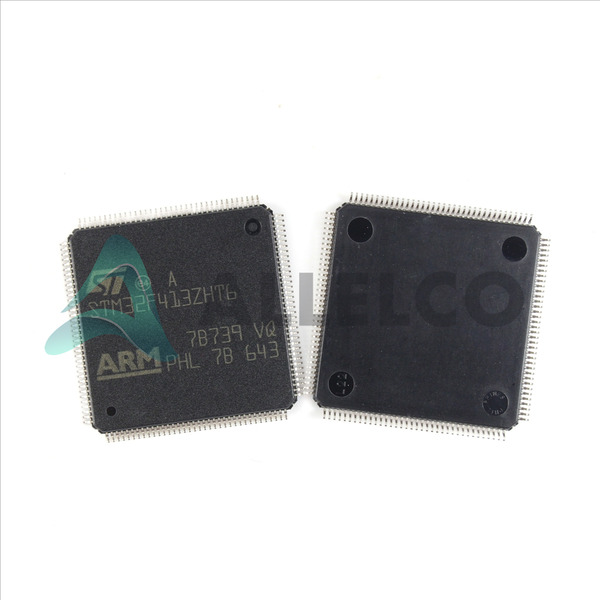

STM32F413ZHT6 - STMicroelectronics

Manufacturer Part Number

STM32F413ZHT6

Manufacturer

stmicroelectronics

Introduction

The STM32F413ZHT6 is a high-performance ARM Cortex-M4 based microcontroller specifically designed for use in embedded applications.

Product Features and Performance

ARM Cortex-M4 core processor

32-bit single-core architecture

Speed of 100MHz

Comprehensive connectivity options including CANbus, USB OTG, I2C, and more

Various peripherals such as PWM, WDT, and DMA

High program memory size of 1.5MB

Advanced data converters with A/D 16x12b and D/A 2x12b

Product Advantages

High performance with Cortex-M4 core at 100MHz

Large program memory and RAM for complex applications

Broad range of connectivity and peripheral support

Efficient power management with voltage supply ranging from 1.7V to 3.6V

Key Technical Parameters

Core Size: 32-Bit Single-Core

Speed: 100MHz

Program Memory Size: 1.5MB

RAM Size: 320KB

Voltage - Supply (Vcc/Vdd): 1.7V ~ 3.6V

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Brown-out Detect/Reset

Power-On Reset

Watchdog Timer

Compatibility

STM32F4 Series compatibility

Surface Mount 144-LQFP package

Application Areas

Industrial control systems

Consumer electronics

Internet of Things devices

Automotive applications

Product Lifecycle

Currently Active status

Not nearing discontinuation with readily available upgrades

Several Key Reasons to Choose This Product

Powerful ARM Cortex-M4 core optimized for efficient processing

Extensive memory capacity facilitating feature-rich applications

Flexible power supply suited for diverse environments

Comprehensive connectivity and peripheral options accommodating multifaceted uses

Robust operating temperature range ideal for challenging conditions
