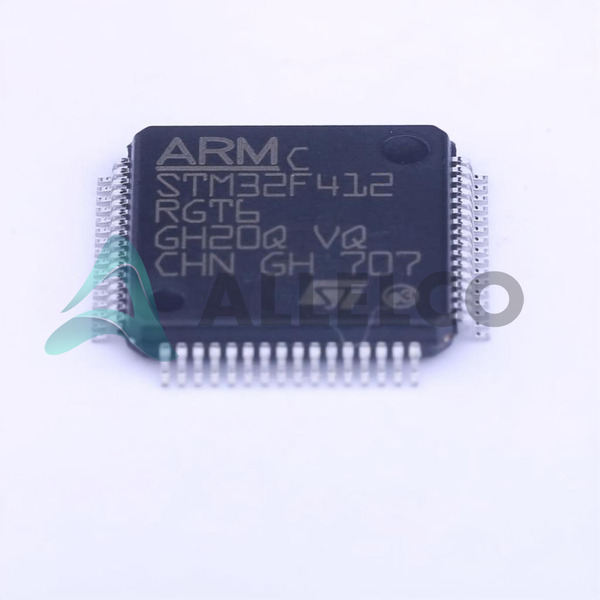

STM32F412RGT6 - STMicroelectronics

Manufacturer Part Number

STM32F412RGT6

Manufacturer

stmicroelectronics

Introduction

The STM32F412RGT6 is a high-performance ARM® Cortex®-M4 based microcontroller suitable for embedded applications requiring efficient system-on-chip solutions.

Product Features and Performance

Core Processor: ARM® Cortex®-M4

Core Size: 32-Bit Single-Core

Speed: 100MHz

Connectivity Options: CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB OTG

Peripherals: Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT

Program Memory Size: 1MB (1M x 8)

Program Memory Type: FLASH

RAM Size: 256K x 8

Data Converters: A/D 16x12b

Oscillator Type: Internal

Product Advantages

Broad connectivity range

Advanced peripheral set suited for diverse applications

High memory capacity provides ample space for complex applications

Low power consumption

Key Technical Parameters

Number of I/O: 50

Voltage Supply (Vcc/Vdd): 1.7V ~ 3.6V

Operating Temperature: -40°C ~ 85°C (TA)

Package / Case: 64-LQFP

Device Package: 64-LQFP (10x10)

Quality and Safety Features

Brown-out Detect/Reset prevents low voltage system malfunctions

Watchdog Timer (WDT) for system recovery in event of software failure

Compatibility

Compatible with a variety of serial communication protocols for versatile use in embedded systems

Application Areas

Internet of Things (IoT)

Consumer Electronics

Industrial Automation

Healthcare Devices

Product Lifecycle

Product Status: Active

Not nearing discontinuation and replacements or upgrades readily available

Several Key Reasons to Choose This Product

High integration capability with extensive I/O and connectivity options

Optimized for power-sensitive applications with 1.7V to 3.6V supply range

Robust in harsh temperature environments from -40°C to 85°C

Large memory capacity supporting complex program operations

Advanced safety features for reliable application performance
