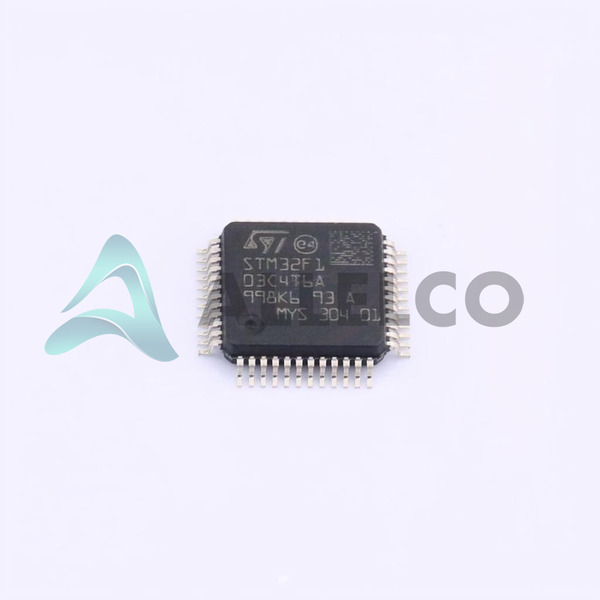

STM32F103C4T6A - STMicroelectronics

Manufacturer Part Number

STM32F103C4T6A

Manufacturer

STMicroelectronics

Introduction

The STM32F103C4T6A is a high-performance ARM® Cortex®-M3 core 32-Bit single-core microcontroller primarily designed for embedded applications, offered by STMicroelectronics.

Product Features and Performance

Core Processor: ARM® Cortex®-M3

Core Size: 32-Bit Single-Core

Operating Speed: 72MHz

Connectivity includes CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB

On-chip peripherals include DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT

Number of I/Os: 26

Program Memory Size: 16KB FLASH

RAM Size: 6KB

Data Converters: 10 x 12-bit A/D

Internal Oscillator

Product Advantages

High performance with low power consumption

Multiple connectivity options suitable for various communication needs

Integrated data converters and multiple peripherals support complex functions

Suitable for low voltage applications ranging from 2V to 3.6V

Key Technical Parameters

Program Memory Type: FLASH

Voltage Supply (Vcc/Vdd): 2V ~ 3.6V

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package / Case: 48-LQFP

Quality and Safety Features

Power-on reset (POR) and power voltage detector (PVD)

Watchdog timer (WDT) to prevent system failures

Temperature sensor for high-temperature protection

Compatibility

Compatible with various standard communication protocols

Suitable for PCBs with Surface Mount Technology thanks to LQFP packaging

Application Areas

Industrial automation

Consumer electronics

Automotive systems

Motor control applications

Product Lifecycle

Status: Active

This product is not nearing discontinuation and is currently supported with replacements and upgrades available.

Several Key Reasons to Choose This Product

Multi-purpose ARM Cortex-M3 core with high execution speed up to 72MHz

Extensive range of built-in peripherals enabling varied usage scenarios

Flexible power supply options making it adaptable for diversified environments

Comprehensive connectivity features supporting multiple communication protocols for broad application scope

High reliability and safety with in-built safety features and operating capability in a wide temperature range
