HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersSTM32F101T4U6A

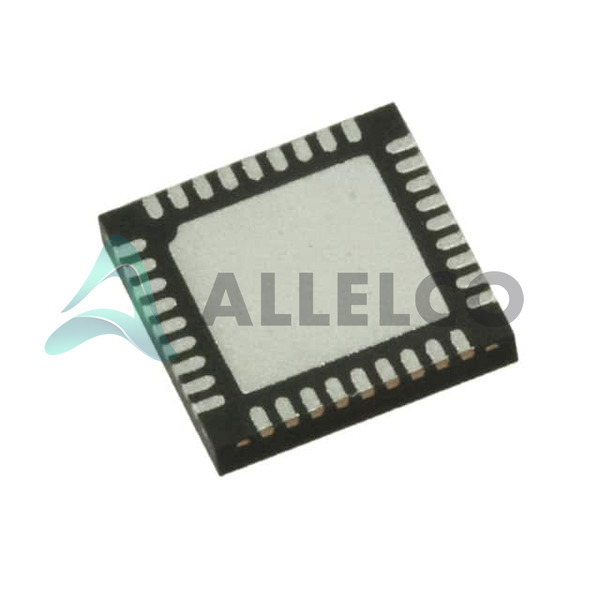

STM32F101T4U6A Image
STM32F101T4U6A Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

STM32F101T4U6A - STMicroelectronics

Manufacturer Part Number
STM32F101T4U6A
Manufacturer
STMicroelectronics
Allelco Part Number
32D-STM32F101T4U6A
ECAD Model
Parts Description
IC MCU 32BIT 16KB FLASH 36VFQFPN
Detailed Description
Package
36-VFQFN Exposed Pad
Data sheet
STM32F101x(4,6) Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 11773

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

STM32F101T4U6A Tech Specifications
STMicroelectronics - STM32F101T4U6A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - STM32F101T4U6A

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V
Supplier Device Package 36-VFQFPN (6x6)
Speed 36MHz
Series STM32F1
RAM Size 4K x 8
Program Memory Type FLASH
Program Memory Size 16KB (16K x 8)
Peripherals DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
Package / Case 36-VFQFN Exposed Pad
Package Tray
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Number of I/O 26
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 10x12b
Core Size 32-Bit Single-Core
Core Processor ARM® Cortex®-M3
Connectivity I²C, IrDA, LINbus, SPI, UART/USART
Base Product Number STM32F101

Parts Introduction

Manufacturer Part Number

STM32F101T4U6A

Manufacturer

STMicroelectronics

Introduction

32-bit ARM Cortex-M3 microcontroller

Product Features and Performance

16KB Flash memory

4KB RAM

10-bit 12-channel ADC

2-7 USART/UARTs, 2 SPIs, 2 I2Cs, 1 IrDA, 1 LIN

DMA, PWM, temperature sensor, watchdog timer

Operating temperature range: -40°C to 85°C

Product Advantages

Low power consumption

Compact 36-VFQFPN (6x6) package

Versatile peripheral set

Robust and reliable

Key Technical Parameters

Core: ARM Cortex-M3, 32-bit

Operating voltage: 2V to 3.6V

Internal oscillator, up to 36MHz

Quality and Safety Features

RoHS3 compliant

Industrial-grade temperature range

Robust 36-pin VFQFPN package

Compatibility

Part of the STM32F1 series

Suitable for a wide range of embedded applications

Application Areas

Industrial control

Building automation

Medical equipment

Consumer electronics

Product Lifecycle

Actively supported by the manufacturer

No discontinuation plans, with availability of replacements and upgrades

Key Reasons to Choose

Powerful 32-bit Cortex-M3 core

Comprehensive peripheral set for versatile applications

Low power consumption for battery-powered designs

Industrial-grade reliability and temperature range

Easy integration and scalability within the STM32 ecosystem

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics STM32F101T4U6A

Product Attribute STM32F101T4U6A STM32F101T6U6 STM32F101TBU6 STM32F101RFT6
Part Number STM32F101T4U6A STM32F101T6U6 STM32F101TBU6 STM32F101RFT6
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Peripherals DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT
Program Memory Type FLASH FLASH FLASH FLASH
Data Converters A/D 10x12b A/D 10x12b A/D 10x12b A/D 16x12b; D/A 2x12b
Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V 2V ~ 3.6V 2V ~ 3.6V 2V ~ 3.6V
Core Size 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Speed 36MHz 36MHz 36MHz 36MHz
Oscillator Type Internal Internal Internal Internal
Series STM32F1 STM32F1 STM32F1 STM32F1
RAM Size 4K x 8 6K x 8 16K x 8 80K x 8
Number of I/O 26 26 26 51
EEPROM Size - - - -
Connectivity I²C, IrDA, LINbus, SPI, UART/USART I²C, IrDA, LINbus, SPI, UART/USART I²C, IrDA, LINbus, SPI, UART/USART I²C, IrDA, LINbus, SPI, UART/USART
Base Product Number STM32F101 STM32F101 STM32F101 STM32F101
Core Processor ARM® Cortex®-M3 ARM® Cortex®-M3 ARM® Cortex®-M3 ARM® Cortex®-M3
Package / Case 36-VFQFN Exposed Pad 36-VFQFN Exposed Pad 36-VFQFN Exposed Pad 64-LQFP
Program Memory Size 16KB (16K x 8) 32KB (32K x 8) 128KB (128K x 8) 768KB (768K x 8)
Package Tray Tray Tray Tray
Supplier Device Package 36-VFQFPN (6x6) 36-VFQFPN (6x6) 36-VFQFPN (6x6) 64-LQFP (10x10)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount

STM32F101T4U6A Datasheet PDF

Download STM32F101T4U6A pdf datasheets and STMicroelectronics documentation for STM32F101T4U6A - STMicroelectronics.

PCN Packaging
2.73KHz.pdf
PCN Assembly/Origin
VFQFPN 08/Jul/2016.pdf
HTML Datasheet
STM32F101x(4,6) Datasheet.pdf
