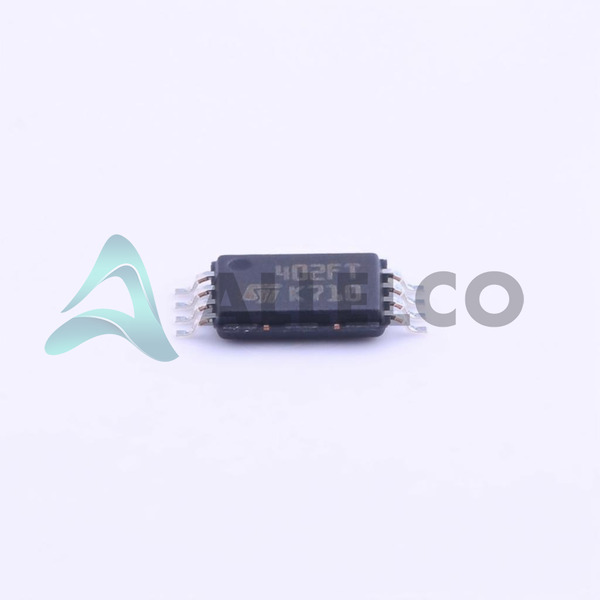

M24C02-FDW6TP - STMicroelectronics

Manufacturer Part Number

M24C02-FDW6TP

Manufacturer

STMicroelectronics

Introduction

The M24C02-FDW6TP is a 2Kbit serial EEPROM from STMicroelectronics designed for storing data that must be preserved during power-off events.

Product Features and Performance

Non-Volatile EEPROM Memory

2Kbit Memory Size

Memory Organization - 256 x 8

I2C Memory Interface

Up to 400 kHz Clock Frequency

5ms Write Cycle Time for Word or Page

Access Time of 900 ns

Wide Supply Voltage Range - 1.7V to 5.5V

Operating Temperature Range from -40°C to 85°C

Surface Mount 8-TSSOP Package

Product Advantages

Robust Data Retention

Low-Power Consumption

High-Speed I2C Interface

Small Footprint for Space-Constrained Applications

Wide Voltage Range for Flexible Use Across Different Applications

Key Technical Parameters

Memory Size: 2Kbit

Memory Organization: 256 x 8

Clock Frequency: 400 kHz

Write Cycle Time: 5ms

Access Time: 900 ns

Voltage Supply Range: 1.7V ~ 5.5V

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

Extended Temperature Range for Reliability

High Reliability with Millions of Write Cycles

Lead-Free and RoHS Compliant

Compatibility

I2C Bus Compatibility

Compatible with Multiple Microcontrollers and Processors

Application Areas

Consumer Electronics

Automotive Electronics

Industrial and Instrumentation

Communication Devices

Product Lifecycle

Active Product

Not Nearing Discontinuation

Replacement or Upgrades Available

Several Key Reasons to Choose This Product

Proven Reliability of STMicroelectronics EEPROMs

Advanced Performance with Fast Access Time

Suitable for High-Speed Applications with 400 kHz I2C Interface

Versatility Across Wide Voltage and Temperature Ranges

Ease of Integration into a Wide Range of Applications

Supports Automated Production with Tape and Reel Packaging
