L99MC6GJTR - STMicroelectronics

Manufacturer Part Number

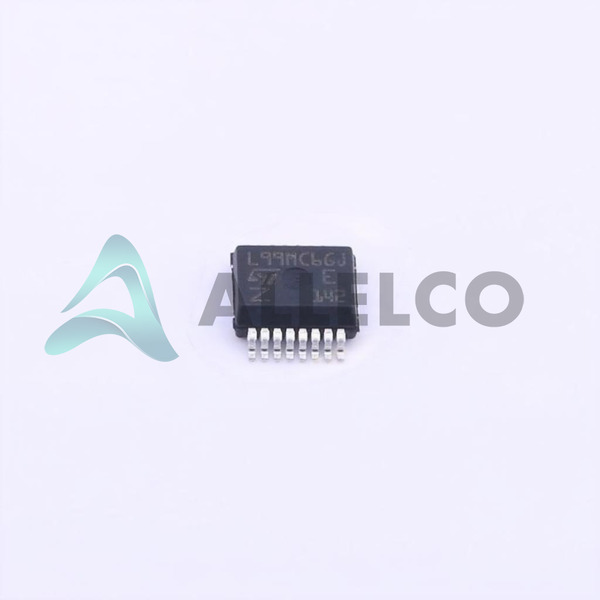

L99MC6GJTR

Manufacturer

STMicroelectronics

Introduction

The L99MC6GJTR is a flexible power management integrated circuit (PMIC) designed for power distribution, specifically developed to drive various load types with power optimization and protection features.

Product Features and Performance

Comprehensive power distribution solution

Six output channels for versatile load driving

High Side or Low Side output configuration

N-Channel output type for efficient switching

Integrated SPI interface for advanced control

Supports a wide operating voltage range from 6V to 28V

Low Rds On typical value of 700mOhm enables efficient power use

Features PWM input for precise control

Slew rate control for smoother transitions

Designed for robust fault protection including current limiting, open load detection, and over temperature protection

Product Advantages

Multifunctional load driving capability enhances system design flexibility

High integration reduces the need for external components

Precision control features aid in optimizing system performance

Advanced protection mechanisms ensure system reliability under fault conditions

Wide operating voltage range accommodates various application needs

Key Technical Parameters

Number of Outputs: 6

Voltage Load: 6V ~ 28V

Voltage Supply (Vcc/Vdd): 3V ~ 5.25V

Current Output (Max): 600mA

Rds On (Typ): 700mOhm

Operating Temperature: -40°C ~ 150°C (TJ)

Quality and Safety Features

Current Limiting (Fixed) for overload protection

Open Load Detect to prevent damage from disconnects

Over Temperature protection to ensure operational safety

Stringent quality control for reliable operation

Compatibility

SPI interface supports wide compatibility with microcontrollers and processors

Flexible High Side or Low Side configuration ensures adaptability to various load types

Application Areas

Automotive systems, including body control modules

Industrial control systems

Smart home applications requiring reliable power management

Product Lifecycle

Status: Active

Adequate provisions for future updates or replacements, ensuring prolonged product usability

Several Key Reasons to Choose This Product

Versatile load driving capability with six outputs offers design flexibility

Integrated advanced controls and fault protection enhance system reliability and performance

Wide operating voltage and temperature ranges make it suitable for a variety of applications

High efficiency and reduced external component requirements lower overall system costs

Ease of integration with existing designs through the SPI interface and PowerSSO-16 packaging
