HomeProductsFiltersEMI/RFI Filters (LC, RC Networks)EMIF03-SIM02M8

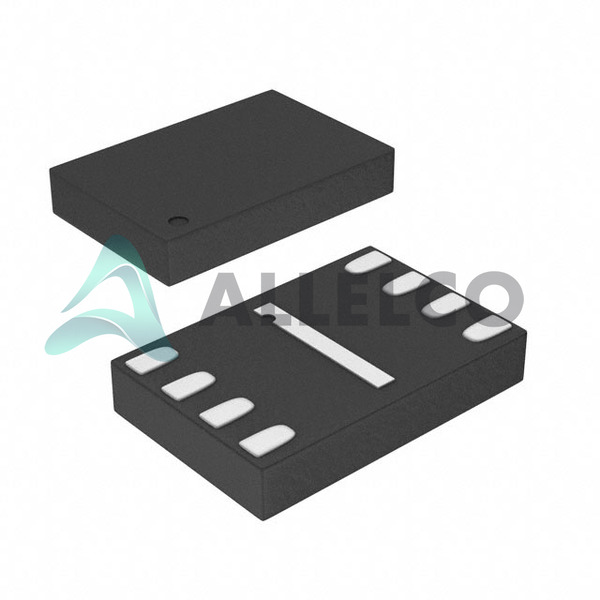

EMIF03-SIM02M8 Image
EMIF03-SIM02M8 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

EMIF03-SIM02M8 - STMicroelectronics

Manufacturer Part Number
EMIF03-SIM02M8
Manufacturer
STMicroelectronics
Allelco Part Number
32D-EMIF03-SIM02M8
ECAD Model
Parts Description
FILTER RC(PI) ESD SMD
Detailed Description
Package
8-UFDFN Exposed Pad
Data sheet
Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 118110

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

EMIF03-SIM02M8 Tech Specifications
STMicroelectronics - EMIF03-SIM02M8 technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - EMIF03-SIM02M8

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Rated -
Values R = 47Ohms, 100Ohms, C = 17pF
Type Low Pass
Technology RC (Pi)
Size / Dimension 0.067' L x 0.059' W (1.70mm x 1.50mm)
Series IPAD™
Resistance - Channel (Ohms) 47, 100
Package / Case 8-UFDFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C
Number of Channels 3
Mounting Type Surface Mount
Height 0.024' (0.60mm)
Filter Order 2nd
ESD Protection Yes
Center / Cutoff Frequency -
Base Product Number EMIF03
Attenuation Value -
Applications Data Lines for Mobile Devices

Parts Introduction

Manufacturer Part Number

EMIF03-SIM02M8

Manufacturer

STMicroelectronics

Introduction

EMI/RFI filter for mobile device data lines

Product Features and Performance

Low Pass Filter

Second Order Filter Design

RC (Pi) Technology

Three Channels

Embedded ESD Protection

Product Advantages

Optimized for mobile devices

High integration reducing PCB space requirement

Enhanced signal integrity

Improved electromagnetic compatibility

Key Technical Parameters

Number of Channels: 3

Resistance - Channel (Ohms): 47, 100

Values: R = 47Ohms, 100Ohms, C = 17pF

Operating Temperature: -40°C to 85°C

Quality and Safety Features

Complies with IEC standards for ESD protection

Compatibility

Designed for surface mount technology

Compatible with data lines for mobile devices

Application Areas

Data Lines for Mobile Devices

Product Lifecycle

Status: Active

Signs of nearing discontinuation: No

Availability of replacements or upgrades: Not specified

Several Key Reasons to Choose This Product

Enhanced durability for harsh environments

Maintains data integrity against EMI/RFI

Facilitates device miniaturization with its compact size

Suitable for high-speed data lines

Offers robust protection for sensitive electronic circuits

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics EMIF03-SIM02M8

Product Attribute EMIF03-SIM02M8 EMIF04-1502M8 EMIF03-SIM02F3 EMIF03-SIM02F2
Part Number EMIF03-SIM02M8 EMIF04-1502M8 EMIF03-SIM02F3 EMIF03-SIM02F2
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics STMicroelectronics
Voltage - Rated - - - -
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Applications Data Lines for Mobile Devices Data Lines for Mobile Devices Data Lines for Mobile Devices Data Lines for Mobile Devices
Resistance - Channel (Ohms) 47, 100 170 47, 100 -
Operating Temperature -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C -40°C ~ 85°C
Center / Cutoff Frequency - - - -
Attenuation Value - - - -
Type Low Pass Low Pass Low Pass Low Pass
Technology RC (Pi) RC (Pi) RC (Pi) RC (Pi)
Values R = 47Ohms, 100Ohms, C = 17pF R = 170Ohms, C = 14pF R = 47Ohms, 100Ohms, C = 20pF R = 57Ohms (Total), C = 20pF
Filter Order 2nd 2nd 2nd 2nd
Base Product Number EMIF03 EMIF04 EMIF03 EMIF03
Number of Channels 3 4 3 3
Package / Case 8-UFDFN Exposed Pad 8-UFDFN Exposed Pad 8-WFBGA, FCBGA 8-WFBGA, FCBGA
Height 0.024' (0.60mm) 0.026" (0.65mm) 0.026" (0.65mm) 0.028" (0.72mm)
Size / Dimension 0.067' L x 0.059' W (1.70mm x 1.50mm) 0.067" L x 0.059" W (1.70mm x 1.50mm) 0.045" L x 0.045" W (1.14mm x 1.14mm) 0.055" L x 0.055" W (1.39mm x 1.39mm)
Series IPAD™ IPAD™ IPAD™ EMIF
ESD Protection Yes Yes Yes Yes
Package Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
