RT9011-KSGQWC - Richtek USA Inc.

Manufacturer Part Number

RT9011-KSGQWC

Manufacturer

richtek

Introduction

The RT9011-KSGQWC is a dual-channel, low-dropout (LDO) linear voltage regulator from Richtek. It features low quiescent current, high PSRR, and comprehensive protection features, making it a suitable choice for a wide range of portable and battery-powered applications.

Product Features and Performance

Dual-channel LDO regulator

Low quiescent current of 80 μA

High PSRR of 70 dB to 38 dB (100 Hz to 300 kHz)

Voltage dropout as low as 0.33 V at 300 mA

Output current up to 300 mA per channel

Over-current, over-temperature, and short-circuit protection

Operating temperature range of -40°C to 85°C

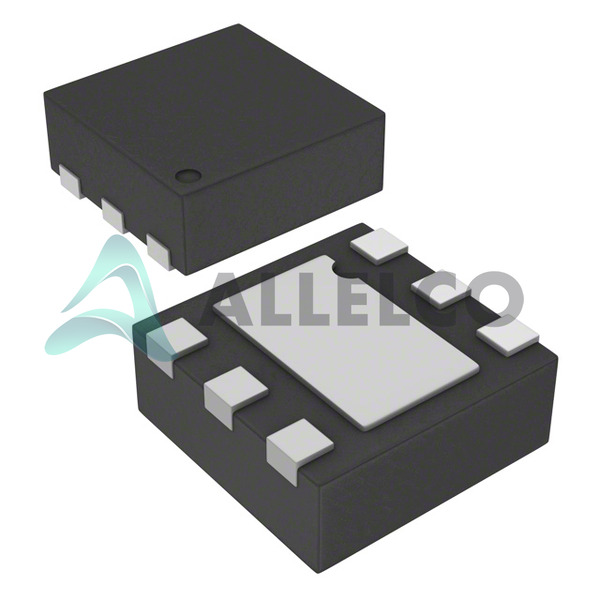

Small 6-WFDFN exposed pad package

Product Advantages

Efficient power management with low quiescent current

Excellent line and load regulation for stable output

Comprehensive protection features for reliable operation

Compact package size suitable for space-constrained designs

Key Reasons to Choose This Product

Optimized for portable and battery-powered applications

Reliable performance with comprehensive protection features

High power efficiency and thermal management capabilities

Flexible configuration options to meet diverse design requirements

Quality and Safety Features

Over-current, over-temperature, and short-circuit protection

Robust design for reliable and safe operation

Compatibility

The RT9011-KSGQWC is a general-purpose LDO regulator and can be used in a wide range of electronic devices and applications where a stable, regulated voltage supply is required.

Application Areas

Portable electronics

Battery-powered devices

Industrial and consumer electronics

Telecommunications equipment

Automotive electronics

Product Lifecycle

The RT9011-KSGQWC is an active product and there are no plans for discontinuation. Richtek offers alternative models with similar features and performance characteristics, such as the RT9010 and RT9012 series. If you require further information or have specific design requirements, please contact our website's sales team.
