TOP258GN-TL - Power Integrations

Manufacturer Part Number

TOP258GN-TL

Manufacturer

power-integrations

Introduction

The power-integrations TOP258GN-TL is a highly integrated, energy-efficient, and reliable offline AC-DC converter with a built-in power switch. It is designed for a wide range of applications, including household appliances, industrial equipment, and consumer electronics.

Product Features and Performance

700V breakdown voltage

Flyback topology

66kHz switching frequency

48W power output

78% duty cycle

Current limiting, over-temperature, and over-voltage fault protection

Wide operating temperature range of -40°C to 150°C (TJ)

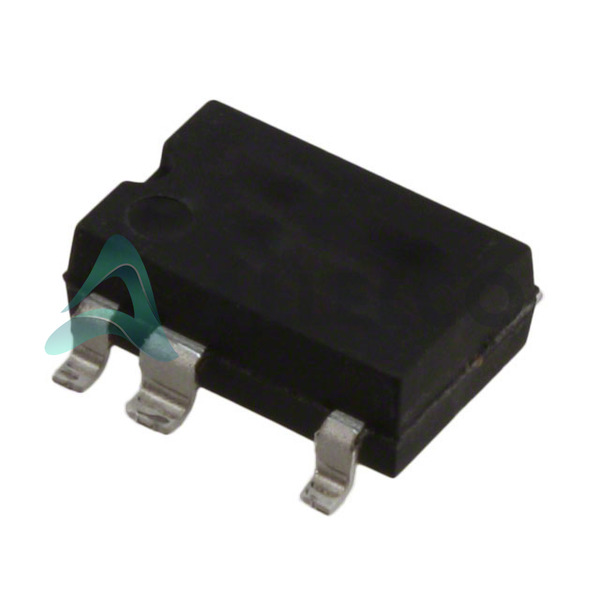

8-SMD (7 Leads) Gull Wing package

Product Advantages

Highly integrated design reduces external component count and simplifies circuit design

Energy-efficient operation with high power density

Robust fault protection for reliable and safe operation

Wide operating temperature range makes it suitable for diverse applications

Key Reasons to Choose This Product

Excellent performance and reliability for critical power applications

Simplifies the design process with its highly integrated and efficient architecture

Cost-effective solution for a wide range of power conversion needs

Quality and Safety Features

Robust fault protection mechanisms ensure safe and reliable operation

Designed and manufactured to meet stringent quality standards

Compatibility

The TOP258GN-TL is a member of the TOPSwitch®-HX series and is compatible with other models in this product family.

Application Areas

Household appliances (e.g., washing machines, refrigerators, air conditioners)

Industrial equipment (e.g., motor drives, power tools, automation systems)

Consumer electronics (e.g., TVs, set-top boxes, chargers)

Product Lifecycle

The TOP258GN-TL is an active product in the power-integrations portfolio. There are equivalent and alternative models available in the TOPSwitch®-HX series. Customers are advised to contact our website's sales team for the most up-to-date product information and availability.
