XF2M-3015-1A-R100 - Omron Electronics Inc-EMC Div

Manufacturer Part Number

XF2M-3015-1A-R100

Manufacturer

Omron

Introduction

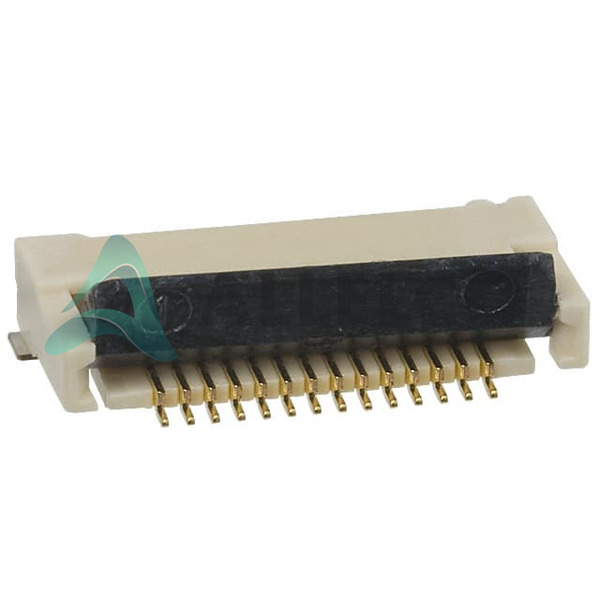

This Omron XF2M-3015-1A-R100 FFC/FPC connector is a surface mount, right-angle connector with 30 positions and a 0.50mm pitch. It features a rotary lock and backlock mechanism for a secure connection, and is designed for a wide range of applications with its compact size and robust construction.

Product Features and Performance

30 positions with 0.50mm pitch

Surface mount, right-angle orientation

Rotary lock and backlock mechanism for secure connection

Supports FFC/FPC thickness of 0.30mm

Height above board of 2.10mm

Operating temperature range of -30°C to 85°C

UL94 V-0 flammability rating

Current rating of 0.5A per contact

Gold-plated copper alloy contacts with 0.150μm plating thickness

Liquid crystal polymer (LCP), halogen-free housing and actuator materials

Product Advantages

Compact and space-saving design

Secure locking mechanism for reliable connections

Wide operating temperature range for versatile applications

Halogen-free and flame-retardant materials for enhanced safety

Key Reasons to Choose This Product

Reliable and durable construction for long-lasting performance

Versatile compatibility with various FFC/FPC thicknesses

Efficient space utilization with the right-angle orientation

Competitive pricing and availability through Omron's global distribution network

Quality and Safety Features

UL94 V-0 flammability rating for enhanced fire safety

High-quality materials and manufacturing processes ensure consistent performance

Rigorous testing and quality control measures

Compatibility

This FFC/FPC connector is designed to be compatible with flat flexible cables and circuits with a thickness of 0.30mm and a pitch of 0.50mm.

Application Areas

Consumer electronics

Industrial automation and control equipment

Medical devices

Automotive electronics

Telecommunications equipment

Product Lifecycle

The XF2M-3015-1A-R100 connector is an active, in-production model. There are no known plans for discontinuation at this time. Equivalent or alternative models may be available, so customers are advised to contact our website's sales team for the most up-to-date information and product recommendations.
