XF2M-1215-1A-R100 - Omron Electronics Inc-EMC Div

Manufacturer Part Number

XF2M-1215-1A-R100

Manufacturer

Omron

Introduction

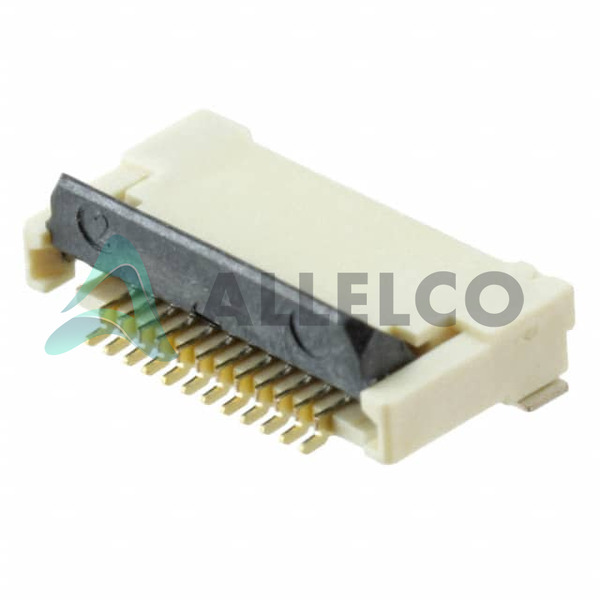

This is a Flat Flexible (FFC/FPC) connector from Omron's XF2M series. It is a surface mount, right-angle connector with 12 positions and a 0.5mm pitch, designed for connecting flexible flat cables (FFC/FPC) to circuit boards. The connector features a rotary lock and backlock for secure cable attachment, and is rated for up to 20 mating cycles.

Product Features and Performance

FFC/FPC Thickness: 0.30mm

Height Above Board: 2.10mm

Voltage Rating: 50V

Operating Temperature: -30°C to 85°C

Current Rating: 0.5A

Contact Finish Thickness: 0.15μm Gold

Product Advantages

Secure cable attachment with rotary lock and backlock mechanism

Compact, right-angle design for space-constrained applications

High-quality materials and construction for reliable performance

Halogen-free housing and actuator for enhanced environmental safety

Key Reasons to Choose This Product

Robust and reliable connector solution for FFC/FPC applications

Versatile mounting options and cable end types to fit your design

Excellent electrical and mechanical performance specifications

Environmentally friendly materials and construction

Quality and Safety Features

UL94 V-0 flammability rating for housing and actuator

Gold-plated contacts for superior electrical conductivity and corrosion resistance

Halogen-free materials for improved environmental sustainability

Compatibility

This FFC/FPC connector is compatible with a variety of flexible flat cables and circuit board designs within the specified parameters.

Application Areas

Consumer electronics

Industrial automation and control

Medical equipment

Automotive electronics

Product Lifecycle

The XF2M-1215-1A-R100 connector is an active, in-production product. There are no known plans for discontinuation at this time. For information on equivalent or alternative models, please contact our website's sales team.
