MIC5238-1.1YD5 - Microchip Technology

Manufacturer Part Number

MIC5238-1.1YD5

Manufacturer

microchip-technology

Introduction

The MIC5238-1.1YD5 is a low-dropout (LDO) voltage regulator from Microchip Technology. It is designed to provide a stable and reliable 1.1V output voltage from an input voltage of up to 6V. With its high efficiency and low quiescent current, the MIC5238-1.1YD5 is well-suited for a variety of power supply applications, including portable electronics, industrial equipment, and automotive systems.

Product Features and Performance

Fixed 1.1V output voltage

Input voltage range of up to 6V

Low dropout voltage of 0.5V at 150mA output current

Low quiescent current of 20μA

Output current capability of 150mA

Integrated overcurrent and overtemperature protection

Enable control feature for power management

Wide operating temperature range of -40°C to 125°C

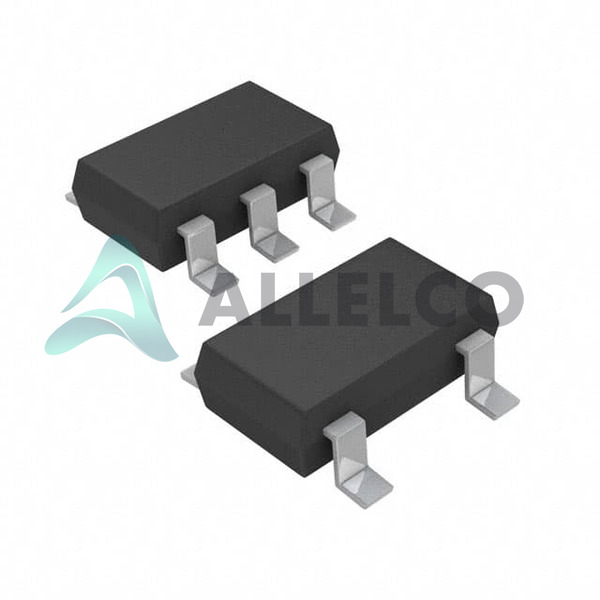

Small surface-mount TSOT-23-5 package

Product Advantages

Stable and reliable output voltage

Efficient power conversion with low power dissipation

Compact and space-saving package

Robust protection features for increased reliability

Versatile for a wide range of applications

Key Reasons to Choose This Product

Reliable and consistent performance in diverse operating conditions

Efficient power management for extended battery life in portable devices

Compact size and integrated features for easy integration into designs

Comprehensive protection features ensure safe and reliable operation

Backed by Microchip's reputation for quality and technical support

Quality and Safety Features

Overcurrent protection to prevent damage from overload conditions

Overtemperature protection to safeguard against thermal runaway

Robust construction and high-quality components for reliable operation

Compliant with relevant industry standards for safety and performance

Compatibility

The MIC5238-1.1YD5 is a direct replacement for the MIC5238 series of LDO regulators. It can be used in a variety of applications that require a stable and efficient 1.1V power supply.

Application Areas

Portable electronics, such as smartphones, tablets, and wearables

Industrial equipment and control systems

Automotive electronics, including infotainment and driver assistance systems

Medical devices and instrumentation

General-purpose power supply applications

Product Lifecycle

The MIC5238-1.1YD5 is currently designated as an obsolete product, meaning it is no longer in active production. However, there may be equivalent or alternative models available from Microchip Technology or other manufacturers. Customers are advised to contact our website's sales team for more information on available options and product lifecycle management.
