HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearMIC39301-1.8WU

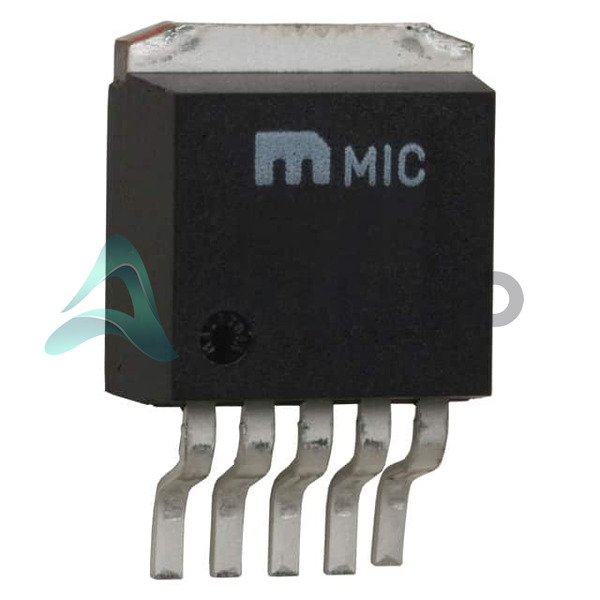

MIC39301-1.8WU Image
MIC39301-1.8WU Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

MIC39301-1.8WU - Microchip Technology

Manufacturer Part Number
MIC39301-1.8WU
Manufacturer
Microchip Technology
Allelco Part Number
32D-MIC39301-1.8WU
ECAD Model
Parts Description
IC REG LINEAR 1.8V 3A TO263-5
Detailed Description
Package
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Data sheet
MIC39300-02.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 7851

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

MIC39301-1.8WU Tech Specifications
Microchip Technology - MIC39301-1.8WU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - MIC39301-1.8WU

Product Attribute Attribute Value
Manufacturer Microchip Technology
Voltage Dropout (Max) 0.55V @ 3A
Voltage - Output (Min/Fixed) 1.8V
Voltage - Output (Max) -
Voltage - Input (Max) 16V
Supplier Device Package TO-263-5
Series -
Protection Features Over Current, Over Temperature, Reverse Polarity
Package / Case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Package Tube
Product Attribute Attribute Value
PSRR -
Output Type Fixed
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Output 3A
Control Features Enable
Base Product Number MIC39301

Parts Introduction

Manufacturer Part Number

MIC39301-1.8WU

Manufacturer

Microchip Technology

Introduction

The MIC39301-1.8WU is a high-performance linear voltage regulator from Microchip Technology, providing a fixed 1.8V output voltage.

Product Features and Performance

Provides a fixed 1.8V output voltage

Capable of delivering up to 3A of output current

Wide input voltage range of up to 16V

Excellent load and line regulation

Fast transient response

Thermal shutdown and overcurrent protection

Product Advantages

Compact and space-efficient TO-263-5 package

Stable and reliable performance

Effective thermal management

Comprehensive protection features

Key Technical Parameters

Output Voltage: 1.8V

Output Current: 3A

Input Voltage Range: Up to 16V

Voltage Dropout: 0.55V @ 3A

Operating Temperature: -40°C to 125°C

Quality and Safety Features

ROHS3 compliant

Thermal shutdown and overcurrent protection

Compatibility

Suitable for a wide range of electronic devices and applications

Application Areas

Portable electronics

Industrial equipment

Telecommunications systems

Automotive electronics

Product Lifecycle

The MIC39301-1.8WU is an active product with no plans for discontinuation.

Replacement or upgrade options may be available from Microchip Technology.

Key Reasons to Choose This Product

Reliable and efficient performance

Comprehensive protection features

Compact and space-saving design

Wide operating temperature range

Proven compatibility and suitability for various applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology MIC39301-1.8WU

Product Attribute MIC39301-1.8WU MIC39301-2.5BT MIC39302WU MIC39500-1.8BT
Part Number MIC39301-1.8WU MIC39301-2.5BT MIC39302WU MIC39500-1.8BT
Manufacturer Microchip Technology Microchip Technology Microchip Technology Microchip Technology
Protection Features Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity Over Current, Over Temperature, Reverse Polarity
Output Configuration Positive Positive Positive Positive
Mounting Type Surface Mount Through Hole Surface Mount Through Hole
Control Features Enable Enable Enable -
Supplier Device Package TO-263-5 TO-220-5 TO-263-5 TO-220-3
Series - - - -
Voltage - Input (Max) 16V 16V 16V 16V
PSRR - - - -
Output Type Fixed Fixed Adjustable Fixed
Voltage Dropout (Max) 0.55V @ 3A 0.55V @ 3A 0.55V @ 3A 0.575V @ 5A
Current - Output 3A 3A 3A 5A
Base Product Number MIC39301 MIC39301-2.5 MIC39302 MIC39500-1.8
Package / Case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA TO-220-5 TO-263-6, D²Pak (5 Leads + Tab), TO-263BA TO-220-3
Voltage - Output (Max) - - 15.5V -
Voltage - Output (Min/Fixed) 1.8V 2.5V 1.24V 1.8V
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Number of Regulators 1 1 1 1
Package Tube Bulk Tube Bulk
