LAN7500-ABZJ-TR - Microchip Technology

Manufacturer Part Number

LAN7500-ABZJ-TR

Manufacturer

Microchip Technology

Introduction

The LAN7500-ABZJ-TR is a highly integrated USB 2.0 to Ethernet bridge controller that enables Ethernet connectivity for a wide range of USB-enabled devices.

Product Features and Performance

Supports Ethernet speeds up to 1000 Mbps (Gigabit Ethernet)

Integrated 10/100/1000 Ethernet PHY

Supports USB 2.0 high-speed (480 Mbps) interface

Integrated power management and power-saving features

Configurable GPIO pins for customization

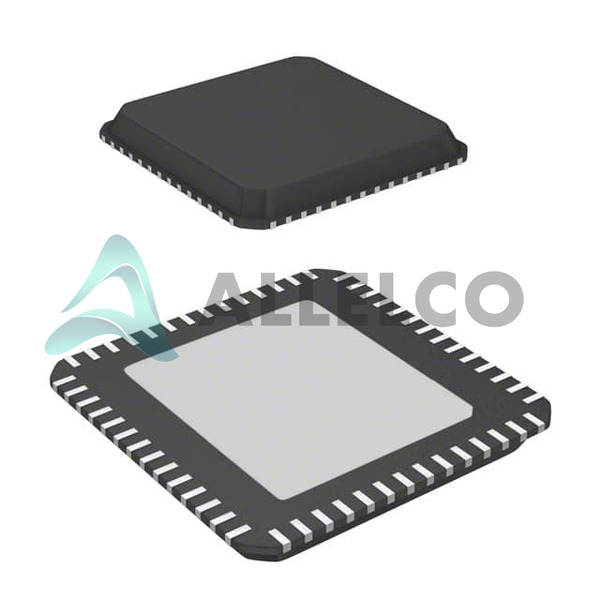

Compact 56-pin QFN package (8x8 mm)

Product Advantages

Simplified design and reduced BOM cost for Ethernet-enabled USB devices

Efficient power management for low-power applications

Flexible GPIO configuration for various application requirements

Key Technical Parameters

Voltage Supply: 1.2V, 2.5V, 3.3V

Operating Temperature: 0°C to 70°C

Ethernet Protocol: 10/100/1000 Base-T/TX

USB Interface: USB 2.0 high-speed (480 Mbps)

Quality and Safety Features

RoHS3 compliant

Tape and reel packaging

Compatibility

Compatible with a wide range of USB-enabled devices, including computers, tablets, and embedded systems

Application Areas

Ethernet connectivity for USB-based devices

Embedded systems, industrial automation, and IoT applications

Thin clients, point-of-sale terminals, and network-enabled devices

Product Lifecycle

The LAN7500-ABZJ-TR is an active product, and Microchip Technology continues to provide support and availability.

Key Reasons to Choose This Product

Highly integrated USB to Ethernet bridge solution

Supports high-speed Ethernet connectivity up to 1000 Mbps

Efficient power management for low-power applications

Flexible GPIO configuration for customization

RoHS3 compliance and reliable tape and reel packaging
