Manufacturer Part Number

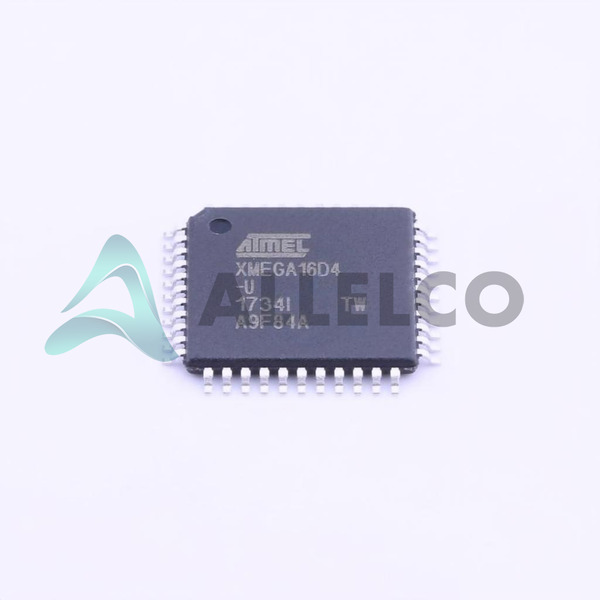

ATXMEGA16D4-AU
Manufacturer
Microchip Technology
Introduction
The ATXMEGA16D4-AU is a high-performance, low-power AVR® XMEGA® D4 microcontroller that operates at 32MHz and utilizes an AVR core with 8/16-bit capability.
Product Features and Performance
Core Processor: AVR
Core Size: 8/16-Bit
Speed: 32MHz
Connectivity: I2C, IrDA, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O: 34
Program Memory Size: 16KB (8K x 16)
Program Memory Type: FLASH
EEPROM Size: 1K x 8
RAM Size: 2K x 8
Voltage - Supply (Vcc/Vdd): 1.6V ~ 3.6V
Data Converters: A/D 12x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 85°C
Product Advantages
Low power consumption
Rich set of peripherals
Flexible connectivity options
Robust temperature range for varied environmental conditions
Key Technical Parameters
Speed: 32MHz
Program Memory Type: FLASH
A/D Converters Resolution: 12-bit
Maximum I/O count: 34
Operating Voltage Range: 1.6V ~ 3.6V
Quality and Safety Features
Brown-out Detect/Reset
Power-on Reset
Watchdog Timer
Compatibility
Compatible with I2C, IrDA, SPI, UART/USART devices
Application Areas
Industrial control systems
Consumer electronics
Automotive applications
Internet of Things devices
Product Lifecycle
Status: Active
Not nearing discontinuation
Replacements or upgrades available through AVR XMEGA series
Several Key Reasons to Choose This Product
Power-efficient performance for battery-operated devices
High integration of features reduces additional component needs
Wide range of connectivity allows for scalable system designs
Robust operating temperature suits various industrial applications
Availability of development tools from Microchip Technology
