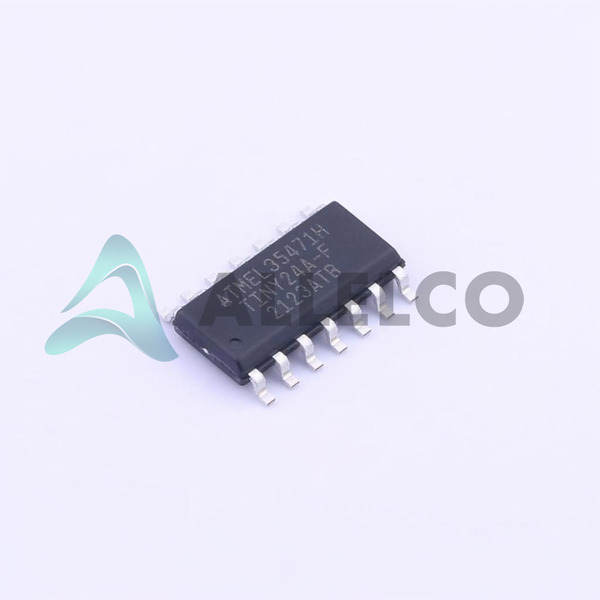

ATTINY24A-SSFR - Microchip Technology

Manufacturer Part Number

ATTINY24A-SSFR

Manufacturer

Microchip Technology

Introduction

The ATTINY24A-SSFR is part of the AVR® ATtiny series, designed as an integrated 8-bit microcontroller featuring high-performance and low power consumption.

Product Features and Performance

Core Processor: AVR

Core Size: 8-Bit operating at a speed of 20 MHz

Connectivity through USI interface

Integrated Peripherals: Brown-out Detect/Reset, Power-on Reset, PWM, Temperature Sensor, Watchdog Timer

Total of 12 Input/Output ports

Program Memory Size: 2KB FLASH

EEPROM Size: 128 bytes

RAM Size: 128 bytes

Internal Oscillator

Embedded Analog-to-Digital Converter with a resolution of 10 bits across 8 channels

Product Advantages

High energy efficiency due to low power AVR core

Versatile connectivity and built-in features suitable for various applications

Wide operating temperature range suitable for extreme environments

Small form factor with Surface Mount Technology simplifies PCB design

Key Technical Parameters

Core Speed: 20 MHz

Program Memory: 2KB (FLASH)

EEPROM: 128 bytes

RAM: 128 bytes

I/O Ports: 12

Supply Voltage: 1.8V to 5.5V

ADC: 8 channels, 10-bit resolution

Operating Temperature Range: -40°C to 125°C

Quality and Safety Features

Brown-out Detection and Reset for system stability during low voltage

Power-on Reset ensures reliable start-up

Watchdog Timer prevents system hang-up or crash

Compatibility

Compatible with USI based systems for serial communication

Mounting Type supports Surface Mount Technology for ease of integration

Application Areas

Industrial automation

Sensor systems

Consumer electronics

Battery operated devices

Product Lifecycle

Product Status: Active

Not nearing discontinuation

No current replacement or scheduled upgrades

Several Key Reasons to Choose This Product

High reliability and stability in extreme temperature environments

Low power consumption extending battery life in portable applications

Comprehensive feature set facilitates extensive application across multiple domains

Easy integration due to SMT and small package size

Active product status ensures availability and continued support
