Manufacturer Part Number

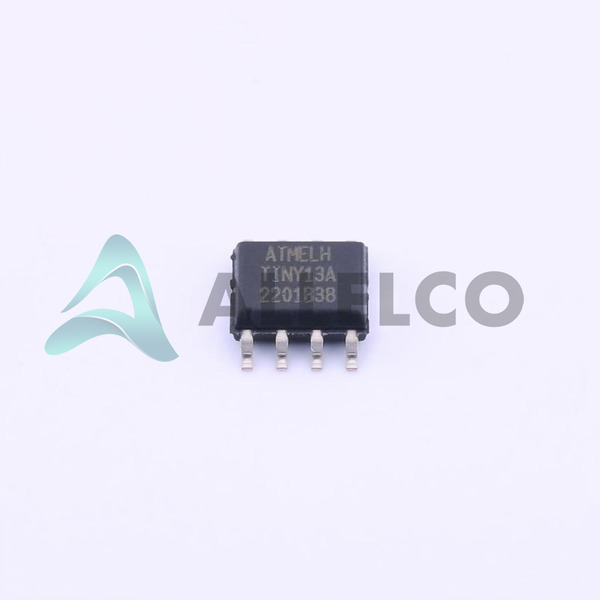

ATTINY13A-SSHR
Manufacturer
microchip-technology
Introduction
The ATTINY13A-SSHR is a high-performance, low-power AVR® 8-Bit microcontroller from Microchip Technology, utilizing advanced RISC architecture.
Product Features and Performance
Advanced RISC Architecture
20MHz Maximum Speed
1KB Flash Memory
64 Bytes EEPROM
64 Bytes Internal RAM
6 GPIO Pins
Internal Oscillator
Features Brown-out Detect/Reset, Power-on Reset, PWM, Watchdog Timer
A/D Converter with 4 channels, 10-bit resolution
Product Advantages
Low power consumption
High performance and reliability
Broad voltage operation range (1.8V ~ 5.5V)
Compact 8-SOIC package for space-constrained applications
Key Technical Parameters
Core Size: 8-Bit
Program Memory Size: 1KB
EEPROM Size: 64 Bytes
RAM Size: 64 Bytes
Number of I/O: 6
Voltage Supply: 1.8V ~ 5.5V
Data Converters: A/D 4x10bit
Operating Temperature: -40°C ~ 85°C
Quality and Safety Features
Built-in brown-out detect and power-on reset circuits for system reliability
Integrated Watchdog Timer for system security
Compatibility
Can be integrated into existing designs using AVR microcontrollers
Application Areas
Ideal for low-power, space-constrained applications including IoT devices, wearable technology, and small-scale automation systems
Product Lifecycle
This product is marked as Obsolete, indicating the end of its production life. Customers are advised to check for replacement options or upgrades.
Several Key Reasons to Choose This Product
Highly efficient for applications requiring low power consumption
Robust feature set including built-in peripherals and internal oscillator
Wide voltage operation range supports diverse application requirements
Compact size and surface mount package ideal for space-constrained projects
Comprehensive technical support and documentation available from Microchip Technology
