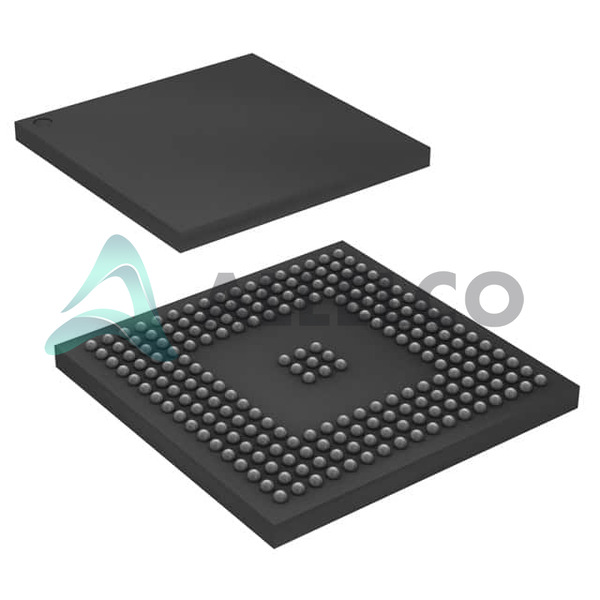

AT91SAM9XE512-CU - Microchip Technology

Manufacturer Part Number: AT91SAM9XE512-CU

Manufacturer: Microchip Technology

Allelco Part Number: 32D-AT91SAM9XE512-CU

ECAD Model

Parts Description: IC MCU 32BIT 512KB FLASH 217BGA

Detailed Description

Package: 217-LFBGA

Data sheet: AT91SAM9XEzzz.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

In stock: 5660

Specifications

AT91SAM9XE512-CU Tech Specifications
Microchip Technology - AT91SAM9XE512-CU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - AT91SAM9XE512-CU

Product Attribute	Attribute Value
Manufacturer	Microchip Technology
Voltage - I/O	1.8V, 2.5V, 3.3V
USB	USB 2.0 (3)
Supplier Device Package	217-LFBGA (15x15)
Speed	180MHz
Series	SAM9XE
Security Features	-
SATA	-
RAM Controllers	SDRAM, SRAM
Package / Case	217-LFBGA
Package	Tray

Product Attribute	Attribute Value
Operating Temperature	-40°C ~ 85°C (TA)
Number of Cores/Bus Width	1 Core, 32-Bit
Mounting Type	Surface Mount
Graphics Acceleration	No
Ethernet	10/100Mbps
Display & Interface Controllers	LCD, Touchscreen
Core Processor	ARM926EJ-S
Co-Processors/DSP	-
Base Product Number	AT91SAM9XE512
Additional Interfaces	EBI/EMI, I²C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART

Parts Introduction

Manufacturer Part Number

AT91SAM9XE512-CU

Manufacturer

Microchip Technology

Introduction

ARM-based Embedded Microprocessor

Product Features and Performance

ARM926EJ-S Core

32-Bit Bus Width

180MHz Operating Speed

Integrated SDRAM and SRAM Controllers

LCD and Touchscreen Interface Controllers

10/100Mbps Ethernet Connectivity

Product Advantages

Optimized for Embedded Applications

Low Power Consumption

Multiple I/O Voltage Support

Key Technical Parameters

1 Core Processor

No Graphics Acceleration

No Co-Processors/DSP

8V, 2.5V, 3.3V I/O Voltage

Operating Temperature Range -40°C to 85°C

Quality and Safety Features

Robust Surface Mount 217-LFBGA Package

Operational in Industrial Temperature Ranges

Compatibility

Supports Numerous Interface Standards Including EBI/EMI, I2C, SPI, UART/USART, MMC/SD/SDIO

Application Areas

Industrial Controls

Networking Equipment

Consumer Electronics

Product Lifecycle

Obsolete Status

Possible Replacement or Upgrades Needed

Several Key Reasons to Choose This Product

Powerful ARM926EJ-S Core for Efficient Processing

Operational Efficiency in Broad Temperature Range

Multiple Connectivity Options for Versatile Use

Proven Manufacturer with Reliable Technology Stack

Direct Support for Intelligent Display Interfaces

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology AT91SAM9XE512-CU

Product Attribute
Part Number	AT91SAM9XE512-CU	AT91SAM9X25-CU	AT91SAM9XE128-QU	AT91SAM9XE256-QU
Manufacturer	Microchip Technology	Microchip Technology	Atmel	Atmel
Supplier Device Package	217-LFBGA (15x15)	217-LFBGA (15x15)	208-PQFP (28x28)	208-PQFP (28x28)
Ethernet	10/100Mbps	10/100Mbps (2)	10/100Mbps	10/100Mbps
USB	USB 2.0 (3)	USB 2.0 (3)	USB 2.0 (3)	USB 2.0 (3)
RAM Controllers	SDRAM, SRAM	LPDDR, LPDDR2, DDR2, DDR, SDR, SRAM	SDRAM, SRAM	SDRAM, SRAM
Display & Interface Controllers	LCD, Touchscreen	-	LCD, Touchscreen	LCD, Touchscreen
Additional Interfaces	EBI/EMI, I²C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART	CAN, EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART	EBI/EMI, I²C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART	EBI/EMI, I²C, ISI, MMC/SD/SDIO, SPI, SSC, UART/USART
Security Features	-	-	-	-
Base Product Number	AT91SAM9XE512	AT91SAM9	-	-
Voltage - I/O	1.8V, 2.5V, 3.3V	1.8V, 2.5V, 3.0V, 3.3V	1.8V, 2.5V, 3.3V	1.8V, 2.5V, 3.3V
Series	SAM9XE	SAM9X	SAM9XE	SAM9XE
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Co-Processors/DSP	-	-	-	-
Package / Case	217-LFBGA	217-LFBGA	208-BFQFP	208-BFQFP
Graphics Acceleration	No	No	No	No
Number of Cores/Bus Width	1 Core, 32-Bit	1 Core, 32-Bit	1 Core, 32-Bit	1 Core, 32-Bit
Speed	180MHz	400MHz	180MHz	180MHz
Core Processor	ARM926EJ-S	ARM926EJ-S	ARM926EJ-S	ARM926EJ-S
SATA	-	-	-	-
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Package	Tray	Tray	Tray	Tray

AT91SAM9XE512-CU Datasheet PDF

Download AT91SAM9XE512-CU pdf datasheets and Microchip Technology documentation for AT91SAM9XE512-CU - Microchip Technology.

Datasheets: AT91SAM9XEzzz.pdf
PCN Packaging: MBB/Label Chgs 16/Nov/2018.pdf Transfer to Microchip/Label/Pkg 5/Sep/2016.pdf
PCN Obsolescence/ EOL: Multiple Devices 28/Aug/2013.pdf SAM9XE Revision B 22/Nov/2014.pdf
