Home Products Integrated Circuits (ICs)Embedded - Microprocessors~~AT91SAM9G20B-CFU~~

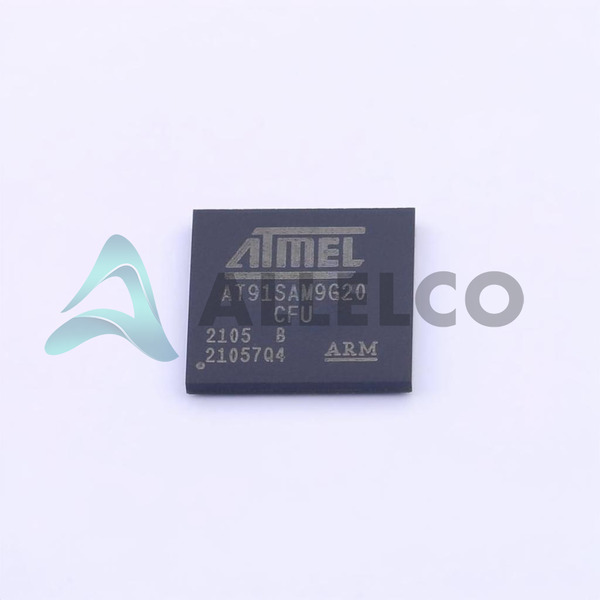

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

AT91SAM9G20B-CFU - Microchip Technology

Name: Microchip Technology AT91SAM9G20B-CFU
Brand: Microchip Technology
SKU: AT91SAM9G20B-CFU
Availability: InStock
Rating: 5 (8 reviews)

Manufacturer Part Number: AT91SAM9G20B-CFU

Manufacturer: Microchip Technology

Allelco Part Number: 32D-AT91SAM9G20B-CFU

ECAD Model

Parts Description: IC MCU 32BIT 64KB ROM 247TFBGA

Package: 247-TFBGA

Data sheet: SAM9G20.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 2672

EXPRESS OPTION

Payment method

Our certification

Specifications

AT91SAM9G20B-CFU Tech Specifications
Microchip Technology - AT91SAM9G20B-CFU technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - AT91SAM9G20B-CFU

Product Attribute	Attribute Value
Manufacturer	Microchip Technology
Voltage - I/O	1.8V, 3.3V
USB	USB 2.0 (2)
Supplier Device Package	247-TFBGA (10x10)
Speed	400MHz
Series	SAM9G
Security Features	-
SATA	-
RAM Controllers	SDRAM, SRAM
Package / Case	247-TFBGA
Package	Tray

Product Attribute	Attribute Value
Operating Temperature	-40°C ~ 85°C (TA)
Number of Cores/Bus Width	1 Core, 32-Bit
Mounting Type	Surface Mount
Graphics Acceleration	No
Ethernet	10/100Mbps
Display & Interface Controllers	-
Core Processor	ARM926EJ-S
Co-Processors/DSP	-
Base Product Number	AT91SAM9
Additional Interfaces	EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0001

Parts Introduction

Manufacturer Part Number

AT91SAM9G20B-CFU

Manufacturer

microchip-technology

Introduction

The AT91SAM9G20B-CFU is a highly integrated and powerful embedded microprocessor from Microchip Technology. It features an ARM926EJ-S core running at 400MHz and a range of on-chip peripherals, making it an ideal choice for a variety of embedded applications.

Product Features and Performance

ARM926EJ-S core with 32-bit bus width running at 400MHz

SDRAM and SRAM memory controllers

10/100 Mbps Ethernet interface

2 x USB 2.0 interfaces

I2C, SPI, UART/USART, and other communication interfaces

Operating temperature range of -40°C to 85°C

Product Advantages

Powerful ARM-based processor core for demanding applications

Extensive on-chip peripheral set to minimize external components

Robust operating temperature range for industrial and harsh environments

Mature and well-supported platform with a large ecosystem

Key Reasons to Choose This Product

High-performance ARM core for efficient and responsive operation

Flexible peripheral set to support a wide range of embedded designs

Reliable and long-lasting performance in demanding environments

Backed by Microchip's extensive resources and support

Quality and Safety Features

Surface mount package for secure and reliable connections

Extensive temperature range for industrial and outdoor applications

Robust and well-tested design for reliable operation

Compatibility

Compatible with a range of Microchip's SAM9 series embedded processors

Supports a wide range of operating systems and development tools

Application Areas

Industrial automation and control systems

Embedded systems in harsh environments

Portable and battery-powered devices

Medical and healthcare equipment

Transportation and logistics applications

Product Lifecycle

The AT91SAM9G20B-CFU is an active product in our portfolio. There are several equivalent or alternative models available, such as the AT91SAM9G25-CU and AT91SAM9G35-CU, which offer similar features and performance. If you have any questions or need assistance, please contact our website's sales team.

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology AT91SAM9G20B-CFU

Product Attribute
Part Number	AT91SAM9G20B-CFU	AT91SAM9G15-CU	AT91SAM9G35-CU	AT91SAM9G20B-CU
Manufacturer	Microchip Technology	Microchip Technology	Microchip Technology	Microchip Technology
Series	SAM9G	SAM9G	SAM9G	SAM9G
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
RAM Controllers	SDRAM, SRAM	LPDDR, LPSDR, DDR2, SDR, SRAM	DDR2, SDRAM, SRAM	SDRAM, SRAM
Core Processor	ARM926EJ-S	ARM926EJ-S	ARM926EJ-S	ARM926EJ-S
Graphics Acceleration	No	No	No	No
Ethernet	10/100Mbps	-	10/100Mbps	10/100Mbps
Display & Interface Controllers	-	LCD, Touchscreen	LCD, Touchscreen	-
Speed	400MHz	400MHz	400MHz	400MHz
Base Product Number	AT91SAM9	AT91SAM9	AT91SAM9	AT91SAM9
Co-Processors/DSP	-	-	-	-
USB	USB 2.0 (2)	USB 2.0 (3)	USB 2.0 (3)	USB 2.0 (2)
Number of Cores/Bus Width	1 Core, 32-Bit	1 Core, 32-Bit	1 Core, 32-Bit	1 Core, 32-Bit
Package	Tray	Tray	Tray	Tray
Supplier Device Package	247-TFBGA (10x10)	217-LFBGA (15x15)	217-LFBGA (15x15)	217-LFBGA (15x15)
SATA	-	-	-	-
Security Features	-	-	-	-
Operating Temperature	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)	-40°C ~ 85°C (TA)
Package / Case	247-TFBGA	217-LFBGA	217-LFBGA	217-LFBGA
Voltage - I/O	1.8V, 3.3V	1.8V, 3.3V	1.8V, 3.3V	1.8V, 3.3V
Additional Interfaces	EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART	EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART	EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART	EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART

AT91SAM9G20B-CFU Datasheet PDF

Download AT91SAM9G20B-CFU pdf datasheets and Microchip Technology documentation for AT91SAM9G20B-CFU - Microchip Technology.

Datasheets: SAM9G20.pdf
PCN Packaging: MBB/Label Chgs 16/Nov/2018.pdf Boxes 07/Dec/2016.pdf
PCN Design/Specification: SAM9G25 04/Oct/2021.pdf SAM9G20 11/Oct/2017.pdf
