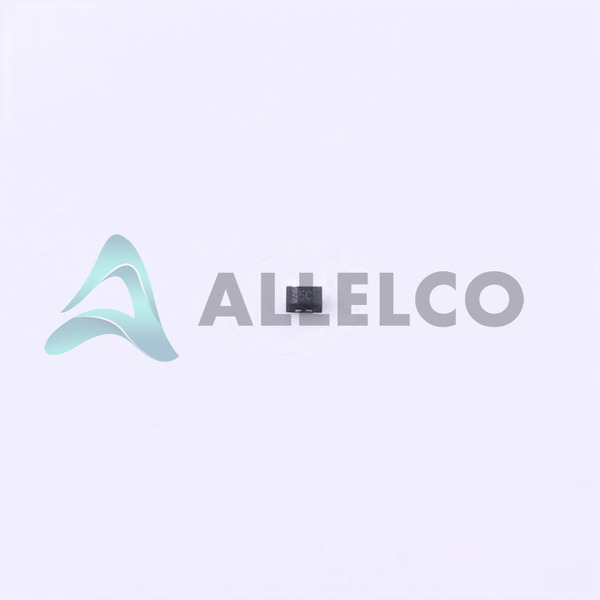

TPD1E01B04DPYT - Texas Instruments

Manufacturer Part Number

TPD1E01B04DPYT

Manufacturer

Texas Instruments

Introduction

The TPD1E01B04DPYT is a Transient Voltage Suppressor (TVS) diode from Texas Instruments. It is designed to provide electrostatic discharge (ESD) and overvoltage protection for sensitive electronic circuits and components.

Product Features and Performance

Bidirectional channel

Reverse standoff voltage (typical): 3.6V (max)

Breakdown voltage (minimum): 6.4V (typical)

Clamping voltage (max) @ Ipp: 15V

Peak pulse current (10/1000μs): 2.5A (8/20μs)

Peak pulse power: 27W

Capacitance @ 1MHz: 0.2pF

Operating temperature range: -40°C to 125°C

Product Advantages

Compact surface mount package

Provides robust ESD and overvoltage protection

Low capacitance for high-speed data applications

RoHS-compliant and halogen-free

Key Reasons to Choose This Product

Reliable protection against ESD and transient events

Optimized for space-constrained designs

Excellent high-frequency performance

Proven Texas Instruments quality and reliability

Quality and Safety Features

RoHS-compliant and halogen-free

Meets relevant safety and EMC standards

Compatibility

Suitable for a wide range of electronic devices and applications

Application Areas

General purpose ESD and transient voltage protection

Suitable for use in various consumer electronics, industrial, and telecommunication applications

Product Lifecycle

The TPD1E01B04DPYT is an active product, and there are no known plans for discontinuation. Our website's sales team offers equivalent or alternative models, and customers are advised to contact our website's sales team for more information on available options.
