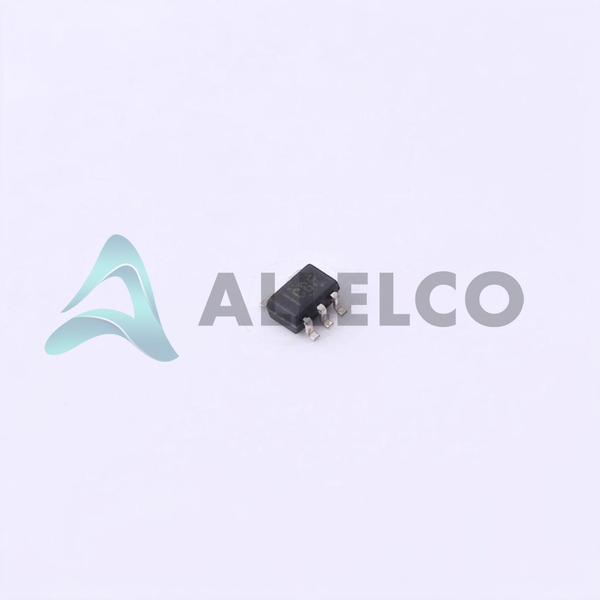

SN74LVC1G06MDCKREP - Texas Instruments

Manufacturer Part Number

SN74LVC1G06MDCKREP

Manufacturer

Texas Instruments

Introduction

The SN74LVC1G06MDCKREP is a single inverter gate from the 74LVC series of logic gates. It offers a compact and efficient solution for inverting digital signals in a variety of electronic applications.

Product Features and Performance

Single inverter gate with 1 input and 1 output

Operates on a wide supply voltage range of 1.65V to 5.5V

Low quiescent current of 10 µA maximum

Output current capability of 32 mA

Low input logic level threshold of 0.58V to 1.65V

High input logic level threshold of 1.07V to 3.85V

Fast propagation delay of 5.5 ns maximum at 5V and 50 pF load

Operates over a wide temperature range of -55°C to 125°C

Surface mount (SC-70-5) package option

Product Advantages

Compact and space-saving solution

Wide operating voltage range for versatile applications

Low power consumption

High noise immunity

Fast switching speed

Key Reasons to Choose This Product

Reliable and high-performance inverter gate from a trusted manufacturer

Suitable for a wide range of digital logic applications

Efficient power management and thermal performance

Easy to integrate into your design

Quality and Safety Features

Tested and certified to meet industry standards

Robust design and construction for reliable operation

Compliant with relevant safety and environmental regulations

Compatibility

The SN74LVC1G06MDCKREP is compatible with other 74LVC series logic gates and can be used in a variety of digital logic circuits.

Application Areas

Digital signal processing

Microcontroller-based systems

Communication and networking equipment

Industrial automation and control

Consumer electronics

Product Lifecycle

The SN74LVC1G06MDCKREP is an active product in the Texas Instruments portfolio. There are no direct equivalent or alternative models available at this time. For the latest product information and availability, please contact our website's sales team.
