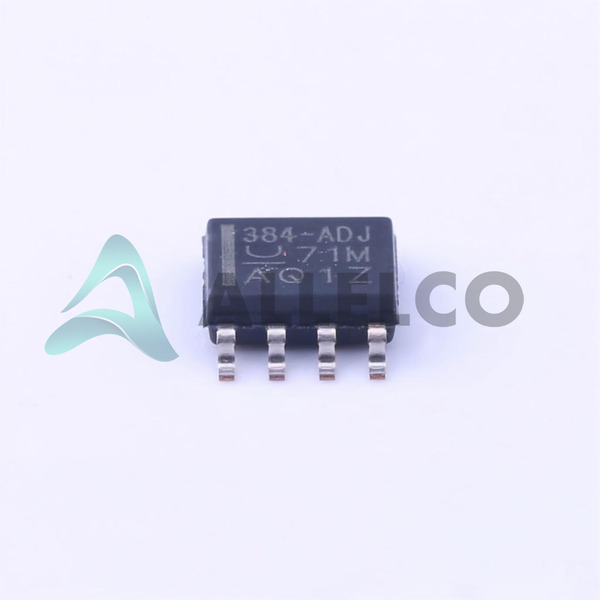

UCC384DP-ADJ - Texas Instruments

Manufacturer Part Number

UCC384DP-ADJ

Manufacturer

Texas Instruments

Introduction

The UCC384DP-ADJ is a low-dropout linear regulator designed for power management applications.

Product Features and Performance

Negative output configuration

Adjustable output voltage

Single regulator integration

Input voltage up to -15V

Adjustable output from -1.25V to -15V

Maximum voltage dropout of 0.5V at 500mA load

Output current capacity of 500mA

Low quiescent current of 350 µA

Product Advantages

Highly efficient linear voltage regulation

Low dropout voltage for better performance at low input voltages

Low quiescent current ideal for battery-powered devices

Adjustable output for application flexibility

Key Technical Parameters

Input Voltage (Max): -15V

Output Voltage (Min/Fixed): -1.25V

Output Voltage (Max): -15V

Voltage Dropout (Max): 0.5V @ 500mA

Output Current: 500mA

Quiescent Current (Iq): 350 µA

Temperature Operating Range: 0°C ~ 70°C

Quality and Safety Features

Over Temperature Protection

Reverse Polarity Protection

Short Circuit Protection

Under Voltage Lockout (UVLO)

Compatibility

Surface Mount on printed circuit boards

Compatible with 8-SOIC package machinery

Application Areas

Battery-powered devices

Portable electronics

Power supply modules

Product Lifecycle

Product Status: Active

Available for new designs and applications

Not nearing discontinuation with replacements or upgrades

Several Key Reasons to Choose This Product

Efficient power management for extended battery life

Flexible voltage regulation tailored for various electronic applications

Reliable over-temperature and reverse polarity safeguards

Compact SOIC-8 package suitable for space-constrained applications

Supported and manufactured by Texas Instruments, a leader in semiconductor solutions
