HomeProductsIntegrated Circuits (ICs)PMIC - PFC (Power Factor Correction)UCC3818DTR

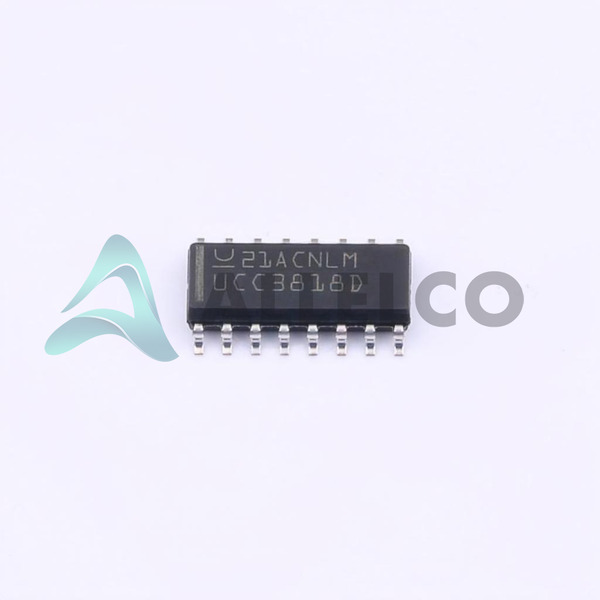

UCC3818DTR Image
Image may be representation.
See specifications for product details.

UCC3818DTR - Texas Instruments

Manufacturer Part Number
UCC3818DTR
Manufacturer
Texas Instruments
Allelco Part Number
32D-UCC3818DTR
ECAD Model
Parts Description
IC PFC CTR AVERAGE 220KHZ 16SOIC
Detailed Description
Package
16-SOIC (0.154", 3.90mm Width)
Data sheet
UCC2817/18, UCC3817/18.pdf
RoHs Status
ROHS3 Compliant
In stock: 24675

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

UCC3818DTR Tech Specifications
Texas Instruments - UCC3818DTR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - UCC3818DTR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 12V ~ 17V
Supplier Device Package 16-SOIC
Series -
Package / Case 16-SOIC (0.154", 3.90mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Mode Average Current
Frequency - Switching 6kHz ~ 220kHz
Current - Startup 150 µA
Base Product Number UCC3818

Parts Introduction

Manufacturer Part Number

UCC3818DTR

Manufacturer

Texas Instruments

Introduction

The UCC3818DTR is a power management integrated circuit specifically used for Power Factor Correction (PFC) applications. It is delivered in Tape & Reel packaging for efficient assembly.

Product Features and Performance

Mode: Average Current

Switching Frequency: 6kHz to 220kHz

Startup Current: 150 µA

Supply Voltage: 12V to 17V

Operating Temperature Range: 0°C to 70°C

Mounting Type: Surface Mount

Package: 16-SOIC (0.154", 3.90mm Width)

Product Advantages

Versatile voltage and temperature operating ranges

High-frequency switching capability for efficient power correction

Key Technical Parameters

Frequency Switching: 6kHz ~ 220kHz

Current Startup: 150 µA

Voltage Supply: 12V ~ 17V

Operating Temperature: 0°C ~ 70°C

Quality and Safety Features

Ensures robust performance over a wide range of environmental conditions.

Compatibility

Designed for surface mount technology, encapsulated within a 16-SOIC package.

Application Areas

Ideal for use in various electronic applications requiring efficient power management and power factor correction.

Product Lifecycle

Product Status: Active

Not nearing discontinuation and offers steady availability.

Several Key Reasons to Choose This Product

High switching frequency range allows flexible application casting.

Low startup current aids in reducing initial power consumption.

Reliable performance in diverse environmental conditions makes it suitable for global applications.

Active product lifecycle status ensures long-term availability and support.

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments UCC3818DTR

Product Attribute UCC3818DTR UCC3818DW UCC3818N UCC3818ADRG4
Part Number UCC3818DTR UCC3818DW UCC3818N UCC3818ADRG4
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Supplier Device Package 16-SOIC 16-SOIC 16-PDIP 16-SOIC
Mounting Type Surface Mount Surface Mount Through Hole Surface Mount
Frequency - Switching 6kHz ~ 220kHz 6kHz ~ 220kHz 6kHz ~ 220kHz 6kHz ~ 220kHz
Current - Startup 150 µA 150 µA 150 µA 150 µA
Mode Average Current Average Current Average Current Average Current
Package Tape & Reel (TR) Tube Tube Tape & Reel (TR)
Package / Case 16-SOIC (0.154", 3.90mm Width) 16-SOIC (0.295', 7.50mm Width) 16-DIP (0.300', 7.62mm) 16-SOIC (0.154", 3.90mm Width)
Base Product Number UCC3818 UCC3818 UCC3818 UCC3818
Voltage - Supply 12V ~ 17V 12V ~ 17V 12V ~ 17V 12V ~ 17V
Series - - - -
Operating Temperature 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C 0°C ~ 70°C
