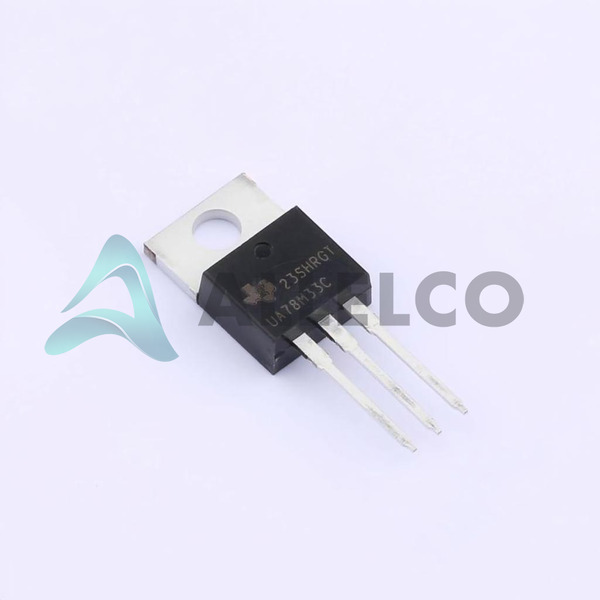

UA78M33CKCS Image
UA78M33CKCS Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite

UA78M33CKCS - Texas Instruments

Manufacturer Part Number
UA78M33CKCS
Manufacturer
Texas Instruments
Allelco Part Number
32D-UA78M33CKCS
ECAD Model
Parts Description
IC REG LINEAR 3.3V 500MA TO220-3
Detailed Description
Package
TO-220-3
Data sheet
UA78M05,06,08,09,10,12,33.pdf
RoHs Status
ROHS3 Compliant
Compare
In stock: 22532

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

UA78M33CKCS Tech Specifications
Texas Instruments - UA78M33CKCS technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - UA78M33CKCS

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 2V @ 350mA
Voltage - Output (Min/Fixed) 3.3V
Voltage - Output (Max) -
Voltage - Input (Max) 25V
Supplier Device Package TO-220-3
Series -
Protection Features Over Current, Over Temperature, Short Circuit
Package / Case TO-220-3
Package Tube
Product Attribute Attribute Value
PSRR 80dB (120Hz)
Output Type Fixed
Output Configuration Positive
Operating Temperature 0°C ~ 125°C
Number of Regulators 1
Mounting Type Through Hole
Current - Output 500mA
Control Features -
Base Product Number UA78M33

Parts Introduction

Manufacturer Part Number

UA78M33CKCS

Manufacturer

Texas Instruments

Introduction

Linear voltage regulator for power management applications

Product Features and Performance

Low Dropout Regulator (LDO)

Single positive output

Fixed output voltage of 3.3V

Power Supply Rejection Ratio (PSRR) of 80dB at 120Hz

Through-hole mounting package

Product Advantages

Stable and reliable voltage output

High PSRR for noise suppression

Built-in protection against current overload, overheating, and short circuits

Key Technical Parameters

Input voltage up to 25V

Maximum voltage dropout of 2V at 350mA

Output current capability of up to 500mA

Operating temperature range from 0°C to 125°C

Quality and Safety Features

Over current protection

Over temperature protection

Short circuit protection

Compatibility

Compatible with various electronic circuits requiring a regulated 3.3V supply

Suitable for through-hole PCB mounting with TO-220-3 package

Application Areas

Power supply circuits

Consumer electronics

Industrial controls

Product Lifecycle

Last Time Buy status indicates nearing discontinuation

Potential for replacements or upgrades may exist

Several Key Reasons to Choose This Product

Proven Texas Instruments quality and reliability

Highly suitable for stable 3.3V applications

Built-in safety features increase system protection

High PSRR enhances circuit performance in noisy environments

Wide operating temperature range suitable for diverse applications

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments UA78M33CKCS

Product Attribute UA78M33CKCS UA78M33CDCYR UA78M33IKVURG3 UA78M33CKVURG3
Part Number UA78M33CKCS UA78M33CDCYR UA78M33IKVURG3 UA78M33CKVURG3
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Output (Min/Fixed) 3.3V 3.3V 3.3V 3.3V
Output Type Fixed Fixed Fixed Fixed
Voltage - Input (Max) 25V 25V 25V 25V
Protection Features Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit Over Current, Over Temperature, Short Circuit
Package Tube Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
Base Product Number UA78M33 UA78M33 UA78M33 UA78M33
Number of Regulators 1 1 1 1
Voltage Dropout (Max) 2V @ 350mA 2V @ 350mA 2V @ 350mA 2V @ 350mA
Package / Case TO-220-3 TO-261-4, TO-261AA TO-252-3, DPak (2 Leads + Tab), SC-63 TO-252-3, DPak (2 Leads + Tab), SC-63
Control Features - - - -
Current - Output 500mA 500mA 500mA 500mA
Mounting Type Through Hole Surface Mount Surface Mount Surface Mount
Output Configuration Positive Positive Positive Positive
Operating Temperature 0°C ~ 125°C 0°C ~ 125°C -40°C ~ 125°C 0°C ~ 125°C
Series - - - -
PSRR 80dB (120Hz) 80dB (120Hz) 80dB (120Hz) 80dB (120Hz)
Supplier Device Package TO-220-3 SOT-223-4 TO-252-3 TO-252-3
Voltage - Output (Max) - - - -

UA78M33CKCS Datasheet PDF

Download UA78M33CKCS pdf datasheets and Texas Instruments documentation for UA78M33CKCS - Texas Instruments.
