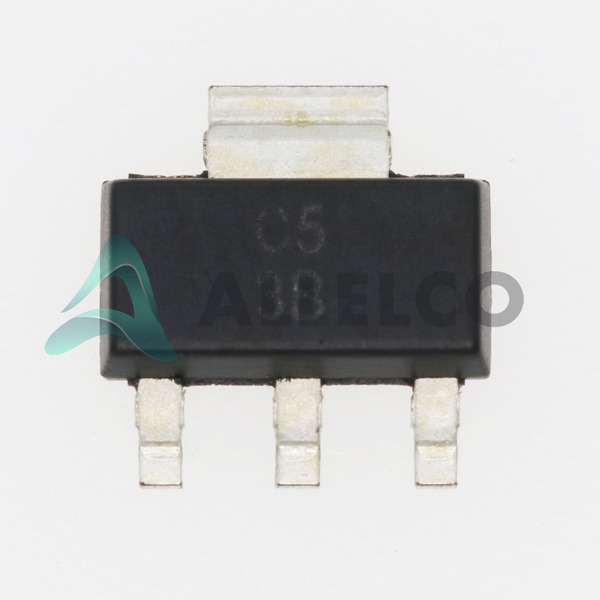

UA78M05CDCYG3 - Texas Instruments

Manufacturer Part Number

UA78M05CDCYG3

Manufacturer

Texas Instruments

Introduction

The UA78M05CDCYG3 is a high-performance, low-dropout linear voltage regulator from Texas Instruments. It is designed to provide a stable and reliable 5V output voltage from an input voltage of up to 25V, making it suitable for a wide range of applications.

Product Features and Performance

Positive fixed output voltage of 5V

Maximum input voltage of 25V

Maximum output current of 500mA

Low dropout voltage of 2V at 350mA

High power supply rejection ratio (PSRR) of 80dB at 120Hz

Over-current, over-temperature, and short-circuit protection

Product Advantages

Excellent line and load regulation for stable output voltage

Compact and space-saving SOT-223-4 surface-mount package

Robust protection features for reliable operation

Wide operating temperature range of 0°C to 125°C

Key Reasons to Choose This Product

Reliable and efficient power regulation for your applications

Versatile input voltage range for flexible system design

Comprehensive protection features for safe and reliable operation

Small footprint and easy integration into your PCB

Quality and Safety Features

Compliant with industry standards for quality and safety

Robust design for long-term reliable performance

Tested and validated for consistent quality

Compatibility

The UA78M05CDCYG3 is compatible with a wide range of electronic devices and systems that require a stable 5V power supply.

Application Areas

Portable electronics

Industrial control systems

Automotive electronics

Telecommunications equipment

General-purpose power supply applications

Product Lifecycle

The UA78M05CDCYG3 is an active product and there are no immediate plans for discontinuation. However, it is always recommended to check with our website's sales team for the latest product information and availability. If you require an alternative or equivalent model, please contact our website's sales team for personalized assistance.
