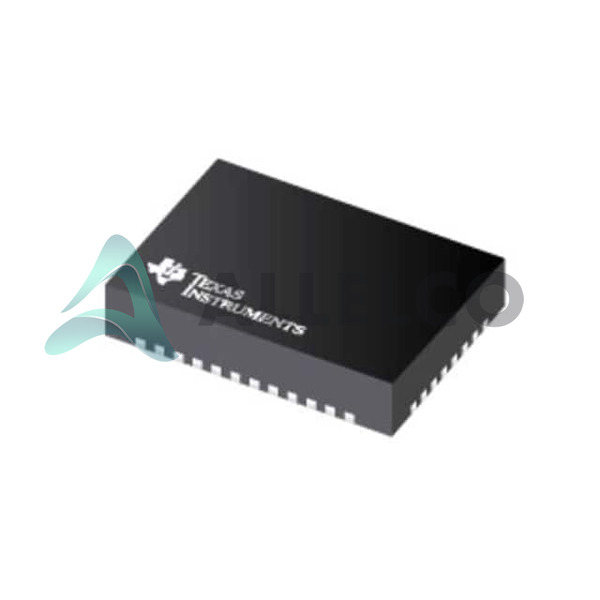

TUSB1146RNQR - Texas Instruments

Manufacturer Part Number

TUSB1146RNQR

Manufacturer

Texas Instruments

Introduction

The TUSB1146RNQR from Texas Instruments is a high-performance USB ReDriver designed to enhance signal quality in USB applications.

Product Features and Performance

Works as a ReDriver for USB signals

Enhances signal integrity

Supports data rates up to 10Gbps

Features input equalization for improved signal reception

Offered in a 40-WFQFN exposed pad package for efficient thermal management

Operates between 3V and 3.6V supply voltage

Product Advantages

Boosts signal clarity to meet USB 3.2 performance requirements

Low input capacitance of 10 pF minimizes loading effect

Operates efficiently within a broad temperature range of 0°C to 70°C

Key Technical Parameters

Data Rate (Max): 10Gbps

Signal Conditioning: Input Equalization

Capacitance Input: 10 pF

Voltage Supply: 3V ~ 3.6V

Operating Temperature: 0°C ~ 70°C

Mounting Type: Surface Mount

Package / Case: 40-WFQFN Exposed Pad

Quality and Safety Features

Designed in compliance with industry-standard quality and safety regulations for reliable and safe operation

Compatibility

Compatible with USB applications requiring enhanced signal quality

Application Areas

Used in systems where USB connectivity needs reinforcement for optimal performance

Product Lifecycle

The product is currently active with no indications of nearing discontinuation. Future replacements or upgrades will align with evolving USB technology standards.

Several Key Reasons to Choose This Product

Ensures robust USB performance by conditioning signals up to 10 Gbps

Promotes system reliability through input equalization

Versatile voltage operation suitable for a variety of USB applications

Thermal efficiency provided by the 40-WFQFN exposed pad package

Compatibility with standard USB systems ensures easy integration
