Manufacturer Part Number

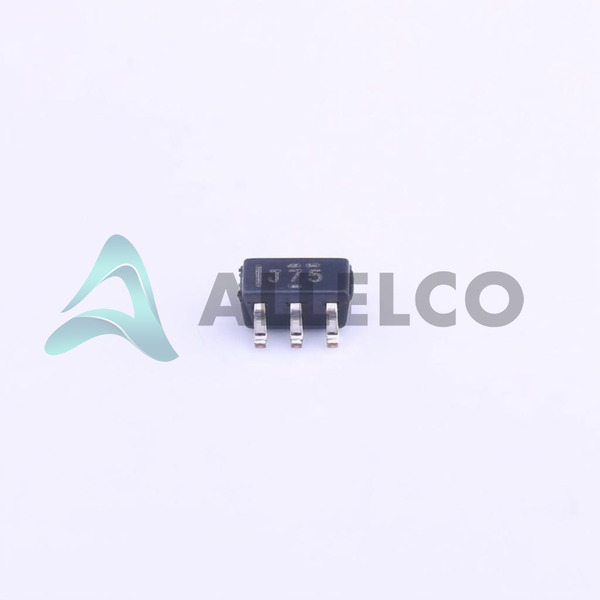

TS5A63157DCKR

Manufacturer

Texas Instruments

Introduction

The TS5A63157DCKR from Texas Instruments is a precisely engineered interface device, categorized under Analog Switches, Multiplexers, and Demultiplexers, designed to manage signal routing in electronic systems effectively.

Product Features and Performance

Single Pole Double Throw (SPDT) switch configuration

2:1 Multiplexer/Demultiplexer Circuit

Ultra-low on-state resistance of 10 Ohm

Exceptional channel-to-channel matching (ΔRon) of 100mOhm

Supports a wide supply voltage range from 1.65V to 5.5V

Rapid switch time with a maximum of 5ns for turn-on and 3.4ns for turn-off

High -3db Bandwidth of 371MHz

Minimal charge injection of -21pC

Low channel capacitance (CS(off), CD(off)) of 5pF

Maximum leakage current (IS(off)) of 30nA

Excellent crosstalk attenuation of -61dB at 10MHz

Product Advantages

The TS5A63157DCKR offers a balance between high performance and low power consumption, making it ideal for battery-operated devices.

Its wide bandwidth allows for efficient signal transmission with minimal distortion.

Compatibility with a broad voltage range ensures adaptability to various power supplies without requiring additional components.

The device's fast switching capability enhances performance in time-sensitive applications.

Key Technical Parameters

On-State Resistance (Max): 10Ohm

Voltage Supply, Single (V+): 1.65V ~ 5.5V

Switch Time (Ton, Toff) (Max): 5ns, 3.4ns

-3db Bandwidth: 371MHz

Operating Temperature: -40°C ~ 85°C

Quality and Safety Features

The TS5A63157DCKR is built to meet high quality and safety standards, ensuring reliable operation across a wide temperature range of -40°C to 85°C.

Compatibility

This product is versatile, compatible with a wide range of electronic components, and easily integrated due to its surface-mount package.

Application Areas

The TS5A63157DCKR is suitable for a variety of applications, including but not limited to audio and video switching, data acquisition systems, and communication devices.

Product Lifecycle

Currently marked as Active. There are no indications of near discontinuation, ensuring availability for both new designs and existing systems requiring maintenance or upgrades.
