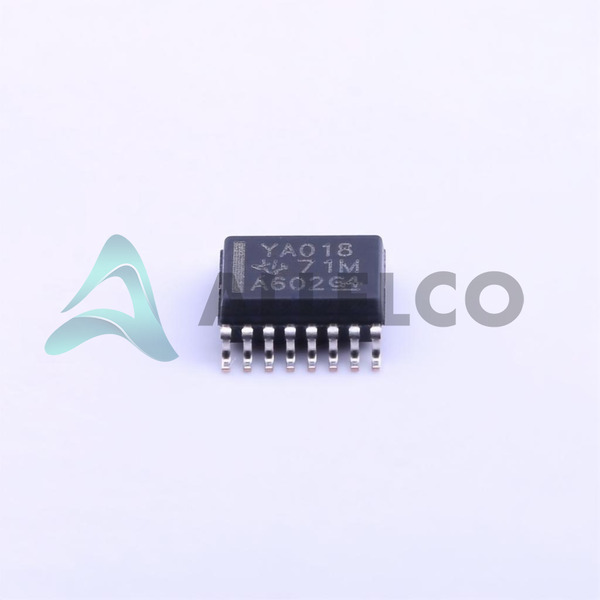

TS3A5018DBQR - Texas Instruments

Manufacturer Part Number

TS3A5018DBQR

Manufacturer

Texas Instruments

Introduction

The TS3A5018DBQR is a high-performance analog signal switch.

Product Features and Performance

Four-channel 2:1 multiplexer/demultiplexer

SPDT switch circuit configuration

Low on-state resistance of 10Ohm

Channel matching at 300mOhm

Fast switching times with 8ns for turn-on and 6.5ns for turn-off

High bandwidth of 300MHz

Low charge injection of 2pC

Channel capacitance of 4.5pF (CS(off)) and 9pF (CD(off))

Low leakage current with a maximum of 100nA (IS(off))

Excellent crosstalk suppression of -48dB at 10MHz

Wide operating temperature range from -40°C to 85°C

Product Advantages

Precision signaling due to low on-state resistance and channel matching

Rapid signal processing with fast switch times

High-frequency signal handling capability

Reduces signal distortion with low charge injection and crosstalk

Multiple channel configuration allows flexibility for various signal routing requirements

Key Technical Parameters

On-State Resistance (Max): 10Ohm

Channel-to-Channel Matching (ΔRon): 300mOhm

Supply Voltage (V+): 1.65V to 3.6V

-3dB Bandwidth: 300MHz

Switch Time (Ton, Toff) (Max): 8ns, 6.5ns

Operating Temperature: -40°C to 85°C

Package: 16-SSOP

Quality and Safety Features

High-quality and robust design ensures reliable operation within specified temperature ranges

Compatibility

Compatible with a wide range of supply voltages from 1.65V to 3.6V

Surface-mount 16-SSOP packaging compatible with standard PCB manufacturing processes

Application Areas

Signal routing in communication systems

Data acquisition systems

Audio and video switching

Industrial control systems

Product Lifecycle

Currently in an active status

Not nearing discontinuation

Availability of replacements or upgrades are likely since Texas Instruments maintains long-term product support

Several Key Reasons to Choose This Product

Trusted manufacturer, Texas Instruments, with a strong reputation for quality and reliability

Designed to support high-speed signallings such as that found in modern digital systems

Broad application suitability due to the high bandwidth and switching speed

Low power consumption with single supply operation, suited for battery-operated devices

Enhanced signal integrity with minimized distortion and leakage

Support for both prototype development and volume production due to Tape & Reel packaging
