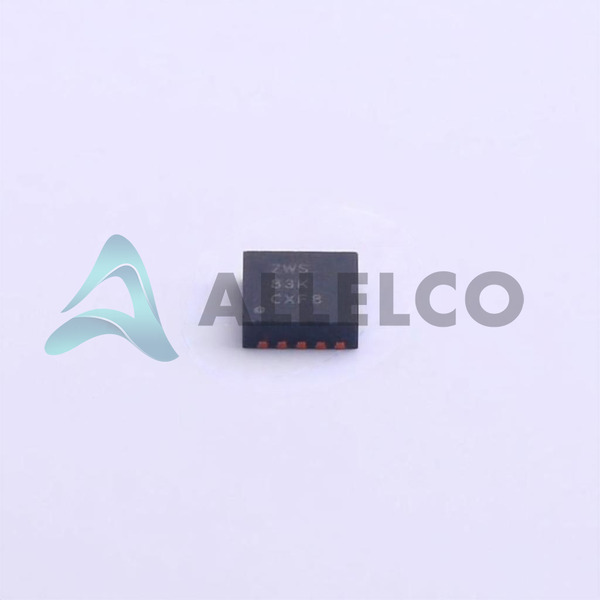

TS3A24159DRCR - Texas Instruments

Manufacturer Part Number

TS3A24159DRCR

Manufacturer

Texas Instruments

Introduction

The TS3A24159DRCR is a precision analog switch featuring a dual SPDT configuration.

Product Features and Performance

Low on-state resistance of 300mOhm

Channel-to-channel matching of 10mOhm

2:1 multiplexer/demultiplexer circuit

Dual 2-channel integration

Fast switch time of 35ns for turn-on and 25ns for turn-off

Wide -3db bandwidth of 23MHz

Low charge injection of 9pC

Channel capacitance of 90pF (CS(off), CD(off))

Ultra-low leakage current of 10nA (IS(off))

Excellent crosstalk performance of -96dB at 1MHz

Product Advantages

High precision and signal fidelity

Low power consumption for extended battery life

Minimal charge injection for accurate signal routing

Superior channel isolation to prevent signal interference

Key Technical Parameters

Voltage supply range of 1.65V to 3.6V

Operating temperature from -40°C to 85°C

Surface mount, 10-VFDFN exposed pad package

Designed for 10-VSON (3x3) device package

Quality and Safety Features

Maintains signal integrity over temperature variations

Robust design to ensure long-term reliability

Compatibility

Compatible with multiple signal types within its voltage range

Surface-mount package for compact PCB design

Application Areas

Mobile devices

Personal electronics

Data acquisition systems

Communication equipment

Product Lifecycle

Status: Active

Not nearing discontinuation with ongoing manufacturer support

Key Reasons to Choose This Product

High integration facilitates a smaller PCB footprint

Texas Instruments’ reputation for high-quality and reliable components

Optimized for low-voltage operation suitable for battery-powered devices

Designed to maintain signal integrity under a variety of conditions

Extensive application support from Texas Instruments
